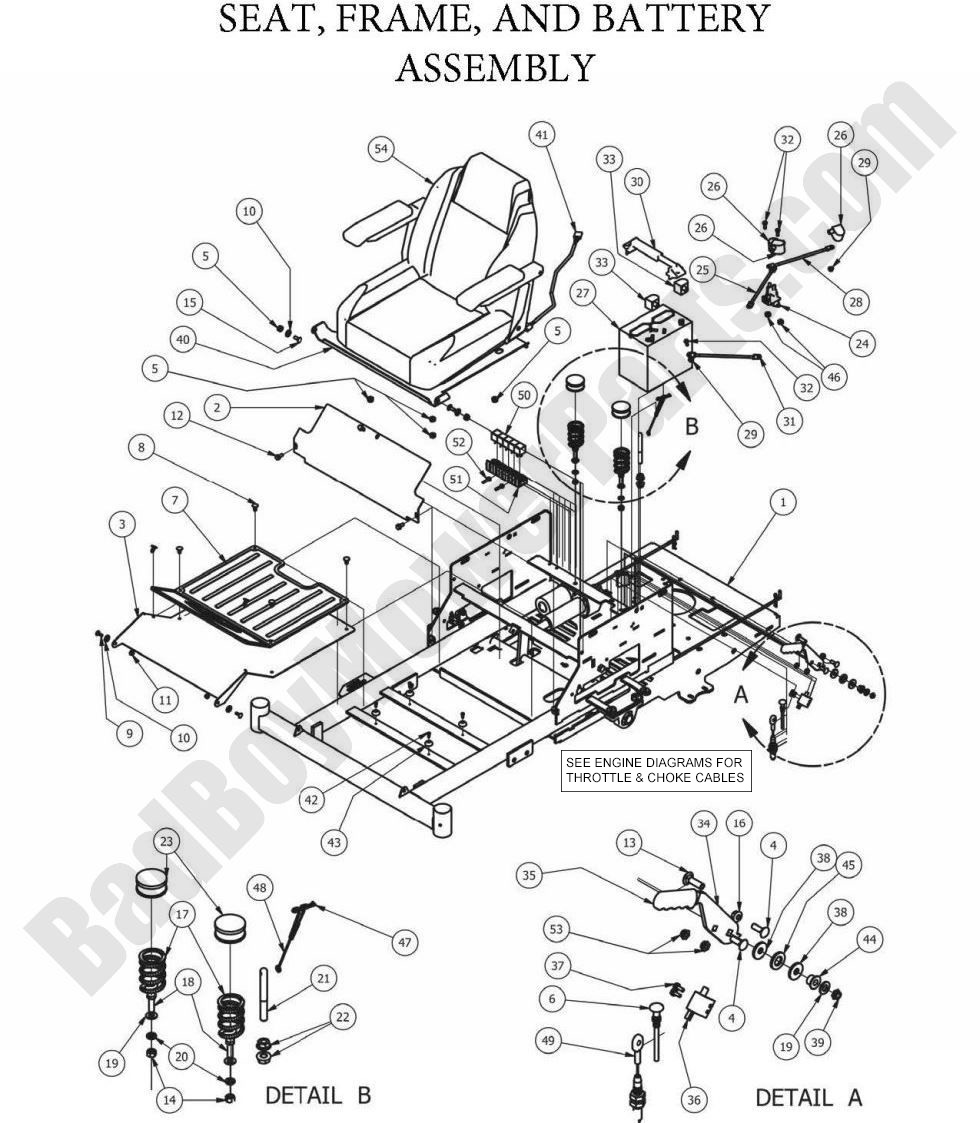

2013 ZT Elite - Seat Frame

2013 ZT Elite - Seat Frame

The 2013 ZT Elite Seat Frame is designed for comfort and durability, providing a stable foundation for a comfortable ride during long hours of mowing. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts, including the seat frame and other components that keep your mower in top condition. Our Bad Boy Mower Part diagrams make it easy to find exactly what you need to replace or repair your seat frame. Whether you need mounting hardware or a complete seat frame, we have all the Bad Boy Lawn Mower Parts you’re looking for. With the convenience of Bad Boy Parts Online, shopping for parts has never been easier. Plus, take advantage of Free Shipping On Orders Over $100 to save on shipping costs. Upgrade your mower’s seat with high-quality parts for your 2013 ZT Elite and enjoy a smoother, more comfortable ride.

Bad Boy Mower Parts Lookup

2013 ZT Elite - Seat Frame
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99
2 014-3420-00 014-3420-00 - 2013-2015 CZT & 2013-2016 ZT Elite Cooler Cover
$64.19
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 081-2010-00 081-2010-00 - 2010-2015 CZT & 2010-2013 ZT Floor Mat
$28.45
8 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
9 018-8040-00 018-8040-00 - 1/4"X3/4" CARRIAGE BOLT
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
12 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
13 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
16 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
17 034-8045-00 034-8045-00 - Seat Spring
$20.49
18 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
19 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
20 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
21 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
22 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
23 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
24 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
25 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
26 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
28 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
29 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
30 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
31 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
32 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
33 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
34 069-1000-00 069-1000-00 - Brake Handle Cam Lever
$7.28
35 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
36 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
37 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
38 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
39 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
40 026-1013-00 026-1013-00 -Seat Plate (See Models Used On For Details)
$42.58
41 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
42 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
43 029-4010-00 029-4010-00 - Button Bumper
$2.99
44 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
45 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
46 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
47 040-6060-00 040-6060-00 - Seat Latch Pin (See Models Used On For Details)
$2.99
48 064-1000-00 064-1000-00 - Seat Pin Lanyard
$5.49
49 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
50 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
51 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99
52 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
53 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
54 071-2020-00 071-2020-00 - Black/Orange Seat 2018 & Older (See Models Used On For Details) (obsolete)
use part #071-2040-17
$559.99
