2012 MZ - Spindle Assembly

2012 MZ - Spindle Assembly

The 2012 MZ Spindle Assembly plays a vital role in the operation of your Bad Boy mower, enabling the smooth rotation of the blades. If you notice uneven cuts or difficulty with blade rotation, your spindle assembly may need to be replaced. BadBoyMowerParts.com offers a wide range of Bad Boy Mower Parts, including the spindle assembly for your 2012 MZ mower. With our clear and easy-to-use Bad Boy Mower Part diagrams, you can quickly locate the necessary components to restore your mower’s performance. We only carry high-quality Bad Boy Lawn Mower Parts, ensuring that your replacement spindles are durable and long-lasting. Shopping for Bad Boy Parts Online makes it convenient to find and order the parts you need to get your mower back in action. Additionally, when you spend over $100, you can enjoy Free Shipping On Orders Over $100, saving you on shipping while maintaining your mower’s functionality and precision

Bad Boy Mower Parts Lookup

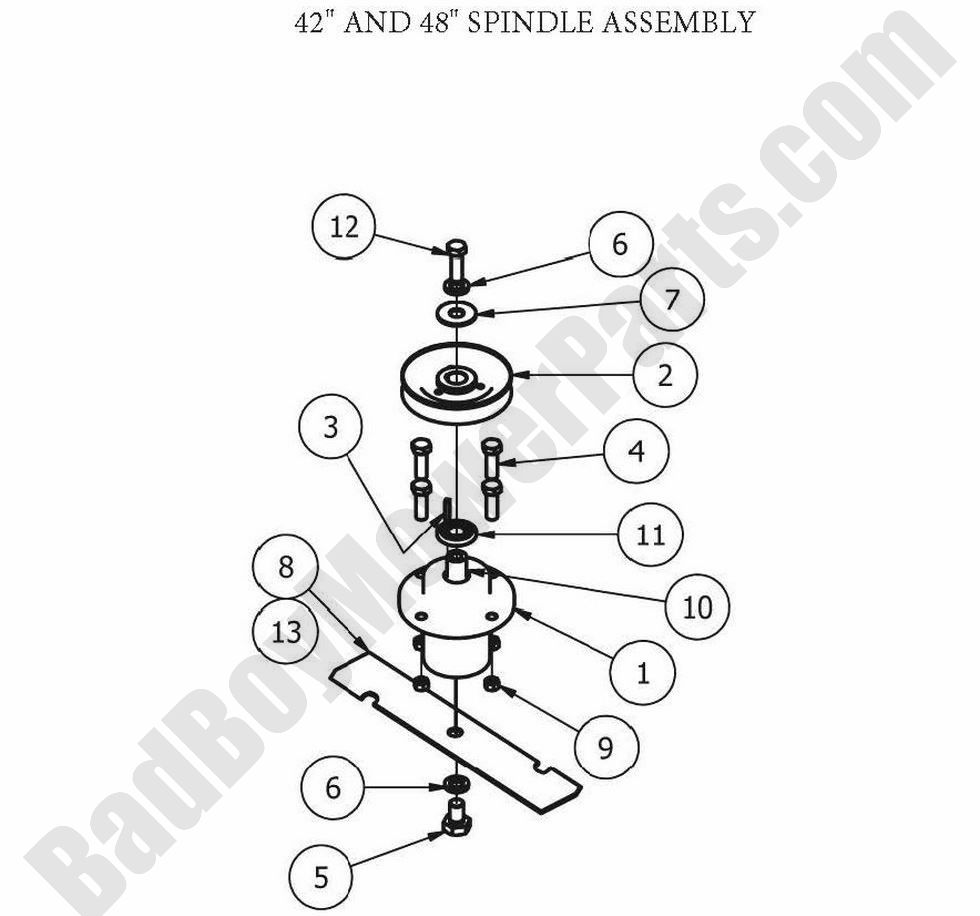

2012 MZ - Spindle Assembly
  Position Number SKU Product Title Price
1 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
2 033-4820-00 033-4820-00 - Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD
$31.22
3 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
4 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
5 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
6 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
6 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
7 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
8 038-4826-00 038-4826-00 - 48" High Lift Fusion Blade-MZ
$22.99
9 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
10 037-6025-00 037-6025-00 - Spindle Shaft - All MZ/MZ Magnum & 2016-2022 Stand-On (36" Deck)
$60.98
11 037-6024-00 037-6024-00 - All MZ Models & 2016-2022 Stand-On (36" Deck) Spindle Bearing
$34.35
12 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
13 038-4221-00 038-4221-00 - 42" High Lift Fusion Blade for MZ
$22.99
