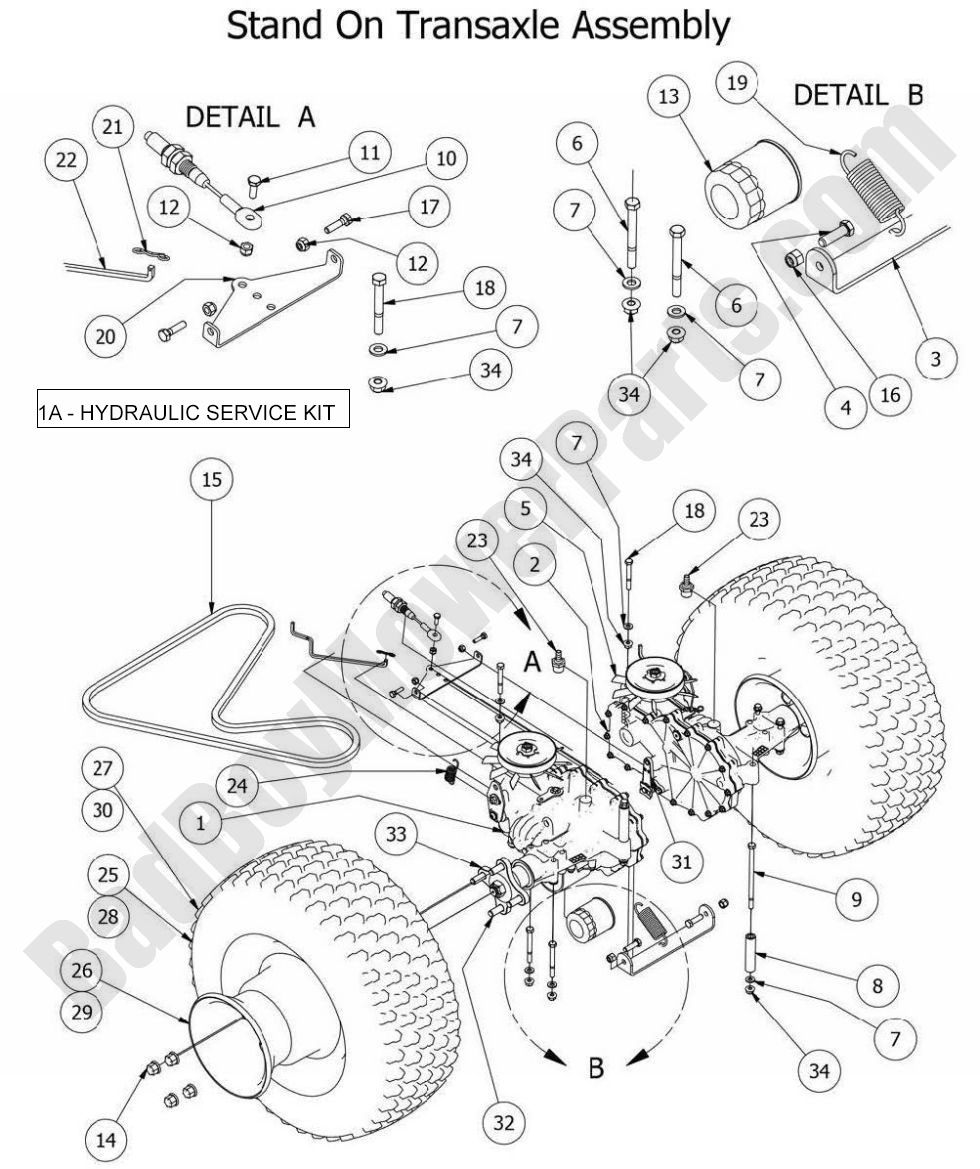

2014 Stand-On - Transaxle Assembly

2014 Stand-On - Transaxle Assembly

The 2014 Stand-On Transaxle Assembly is an essential part of your mower, providing the necessary power to the wheels. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts, including the Transaxle Assembly for the 2014 Stand-On mower. This assembly ensures that your mower moves efficiently and effectively, making it an essential component for any lawn care professional. Our Bad Boy Lawn Mower Parts are designed with durability in mind, so you can rely on them to perform well over time. With Bad Boy Mower Part diagrams, it’s easy to find and order the correct transaxle assembly for your specific model. When you shop Bad Boy Parts Online, you can be confident that you're getting the best prices on high-quality parts. Don’t forget about Free Shipping On Orders Over $100, so you can get your 2014 Stand-On Transaxle Assembly delivered straight to your door without paying extra for shipping.

Bad Boy Mower Parts Lookup

2014 Stand-On - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-02
$819.99
2 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-02
$819.99
3 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
4 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
5 050-2072-00 050-2072-00 - Fan/Pulley Kit
$63.96
6 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
8 025-5340-00 025-5340-00 - .365 ID X .752 OD X 3.313 Length Spacer Zinc
$8.74
9 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
10 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
13 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
14 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
15 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
16 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
17 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
18 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
19 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
20 039-0212-00 039-0212-00 - Brake Bracket (See Models Used On For Details)
$25.54
21 044-2004-00 044-2004-00 - Bow Pin
$2.99
22 028-0060-00 028-0060-00 - Brake Release Bar (See Models Used On For Detail)
$7.28
23 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
24 034-1050-00 034-1050-00 - Transaxle Spring for Stand On (See Models Used On For Details)
$7.28
25 022-5460-00 022-5460-00 - 23 x 10.50 -12 Assembly w/Negative Offset Wheel 54"CZT (One Tire & Rim Assy)
$248.99
26 022-7061-00 022-7061-00 - 12x8.5 Orange Wheel - Solid (One Rim Only)
$182.99
27 022-5351-00 022-5351-00 - 23 x 10.50 - 12 Tire (One Tire Only)
$182.99

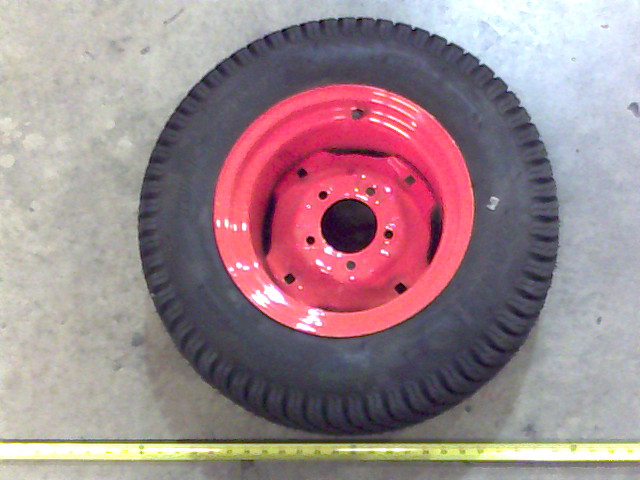

28 022-3000-00 022-3000-00 - 23x8.50-12 Tire Assembly (obsolete)
use part #022-3010-00
$247.99
29 022-3026-00 022-3026-00 - 12x7 Wheel-23 x 8.50 - 12 Tire
$74.89
30 022-3025-00 022-3025-00 - 23 x 8.50 - 12 Turf Tire
$236.99
31 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
32 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
33 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
34 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
