2012 MZ Steering Arm

Steering Arm

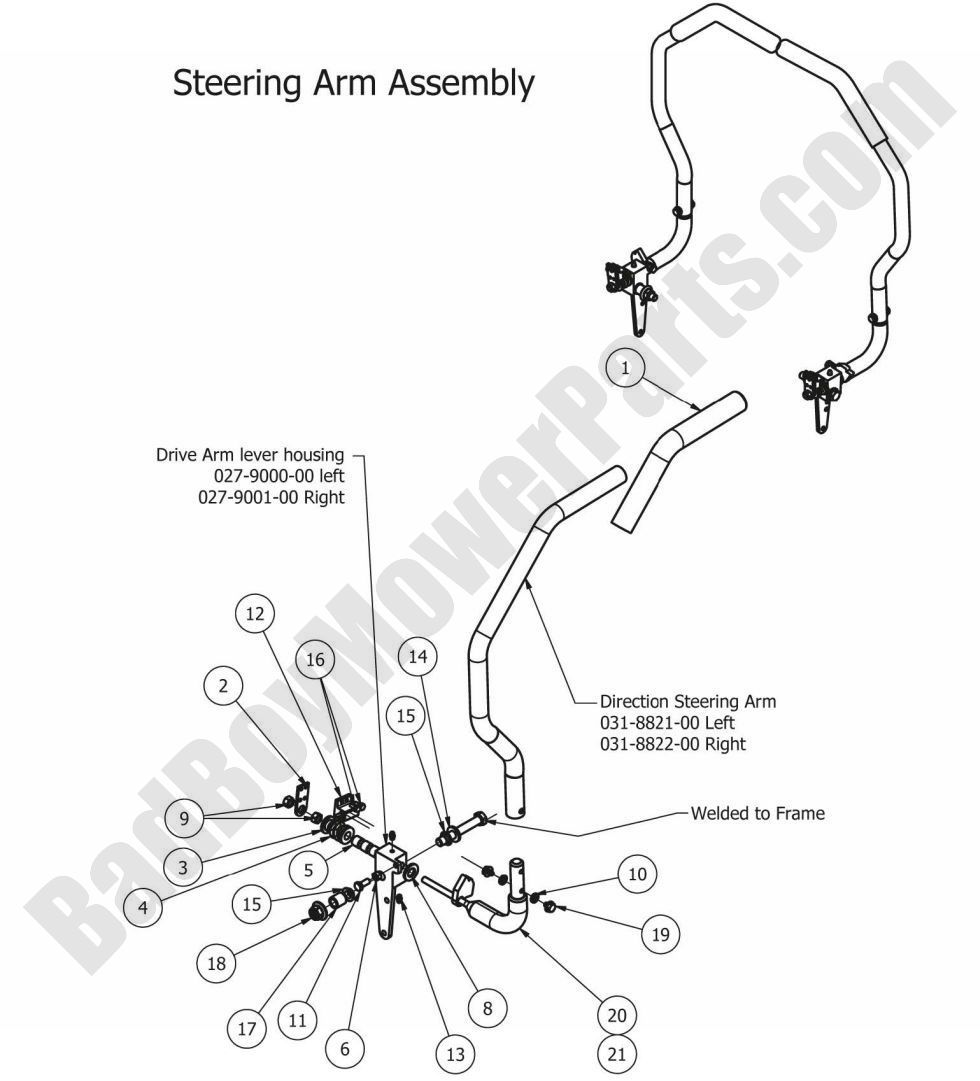

The Bad Boy Mower parts diagram for the 2012 MZ Steering Arm is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 MZ models. Find all of your Bad Boy mowers 2012 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 MZ Steering Arm. If you are not able to find the Bad Boy parts for your 2012 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 MZ Steering Arm
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89
1 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
2 039-1125-00 039-1125-00 - MZ Switch Bracket
$5.22
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
4 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
5 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
8 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
9 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
10 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
11 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
12 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
13 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
14 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Wa sher for 2012 Drive Arm Blocks
$4.83
15 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
16 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch-ZT
$2.99
17 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt-Steerin g Arms
$2.99
20 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-9025-70
$85.17
21 031-9020-00 031-9020-00 - Left Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
22 027-9000-00 027-9000-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Left)
$42.58
23 027-9001-00 027-9001-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Right)
$42.58
25 031-8850-98 031-8850-98 - OBSOLETE USE Part # 031-8850-70 Left Steering Arm Assembly Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-8850-70
$93.64
26 031-8851-98 031-8851-98 - OBSOLETE USE Part # 031-8851-70 Right Steering Arm Assembly Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-8851-70
$93.64
