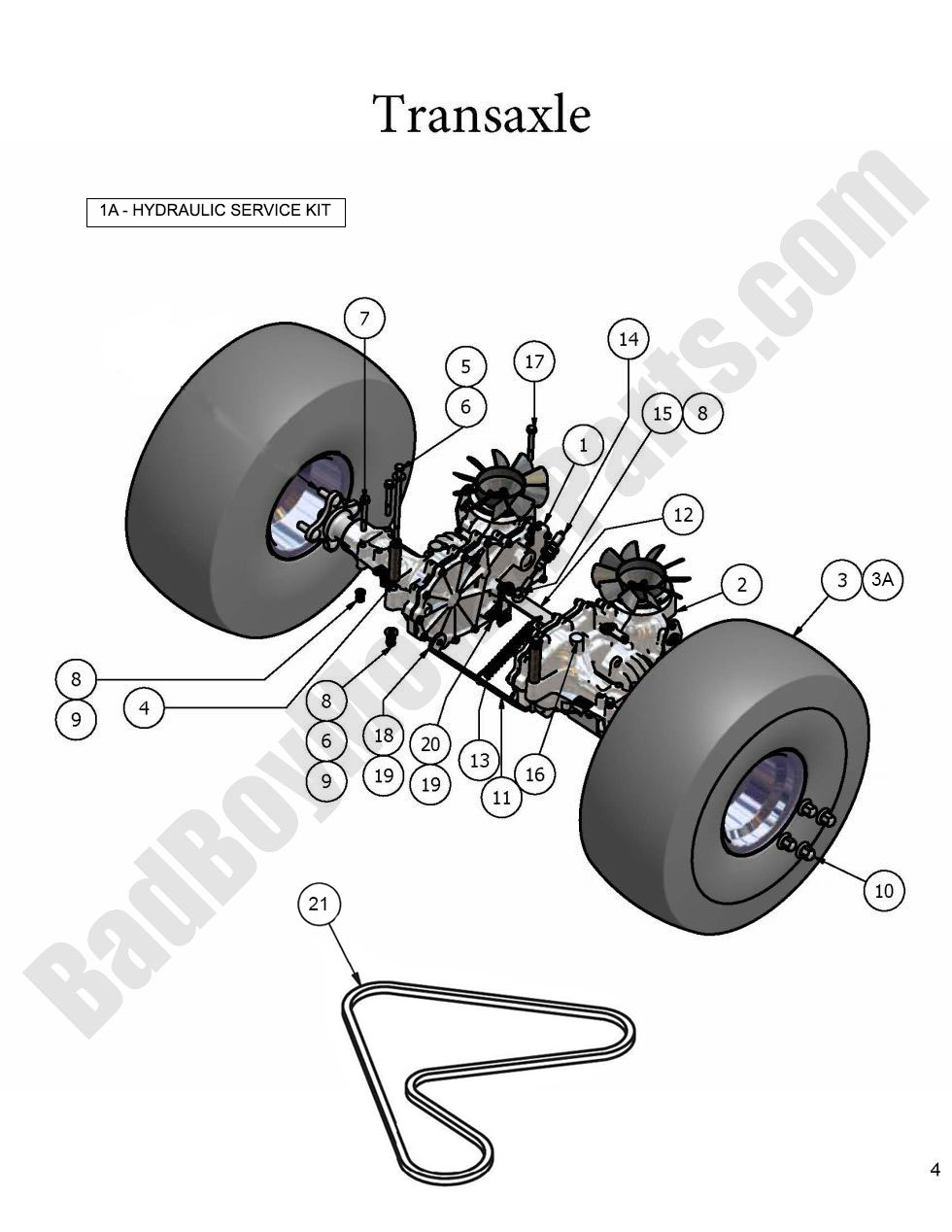

2007 ZT - Transaxle

2007 ZT - Transaxle

The 2007 ZT Transaxle is essential for the movement of your mower, ensuring smooth and controlled operation. BadBoyMowerParts.com carries a comprehensive selection of Bad Boy Mower Parts for your transaxle, including gears, seals, and more. The site features Bad Boy Mower Part diagrams, which help you quickly locate the exact parts you need for repairs or maintenance. Whether you need a replacement transaxle or specific components for your 2007 ZT, you can find them in the extensive collection of Bad Boy Lawn Mower Parts. Shopping Bad Boy Parts Online ensures a simple process, with the added bonus of Free Shipping On Orders Over $100, making it even more convenient to keep your mower operating at its best.

Bad Boy Mower Parts Lookup

2007 ZT - Transaxle
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 050-2081-00 050-2081-00 - Left ZT Transaxle ZL-KCEE-3BKC-1RXX (obsolete)
use part #050-2096-01
$729.99
2 050-2080-00 050-2080-00 - Right ZT Transaxle ZL-GCEE-3BKV-1RXX - Obsolete - USE PART #050-2095-01 (obsolete)
use part #050-2095-01
$729.99

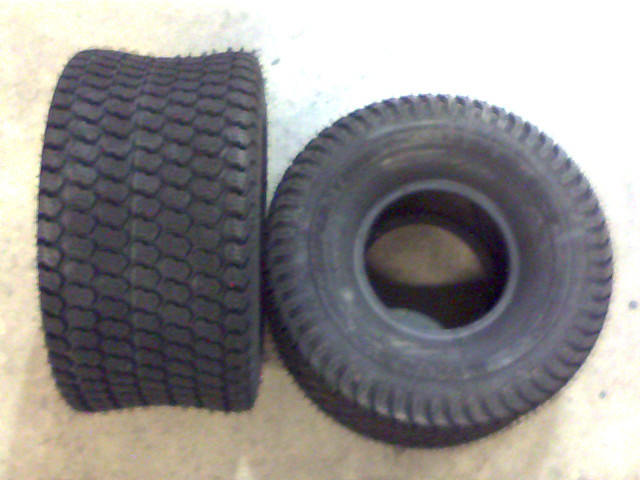

3A 022-6003-00 022-6003-00 - 20x10.50-8 Turf Tire (One Tire Only)
$141.99
3 022-6000-00 022-6000-00 - 20x10.50-8 Tire/Wheel Assy Carlisle Tire (Priced Per Assembly) for 022-6002-00
$174.99
4 025-5340-00 025-5340-00 - .365 ID X .752 OD X 3.313 Length Spacer Zinc
$8.74
5 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
6 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
7 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
11 039-0053-00 039-0053-00 - Crossover Brake Bracket
$14.19
12 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
13 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
14 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
15 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
16 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
17 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
18 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
19 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
20 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
21 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
