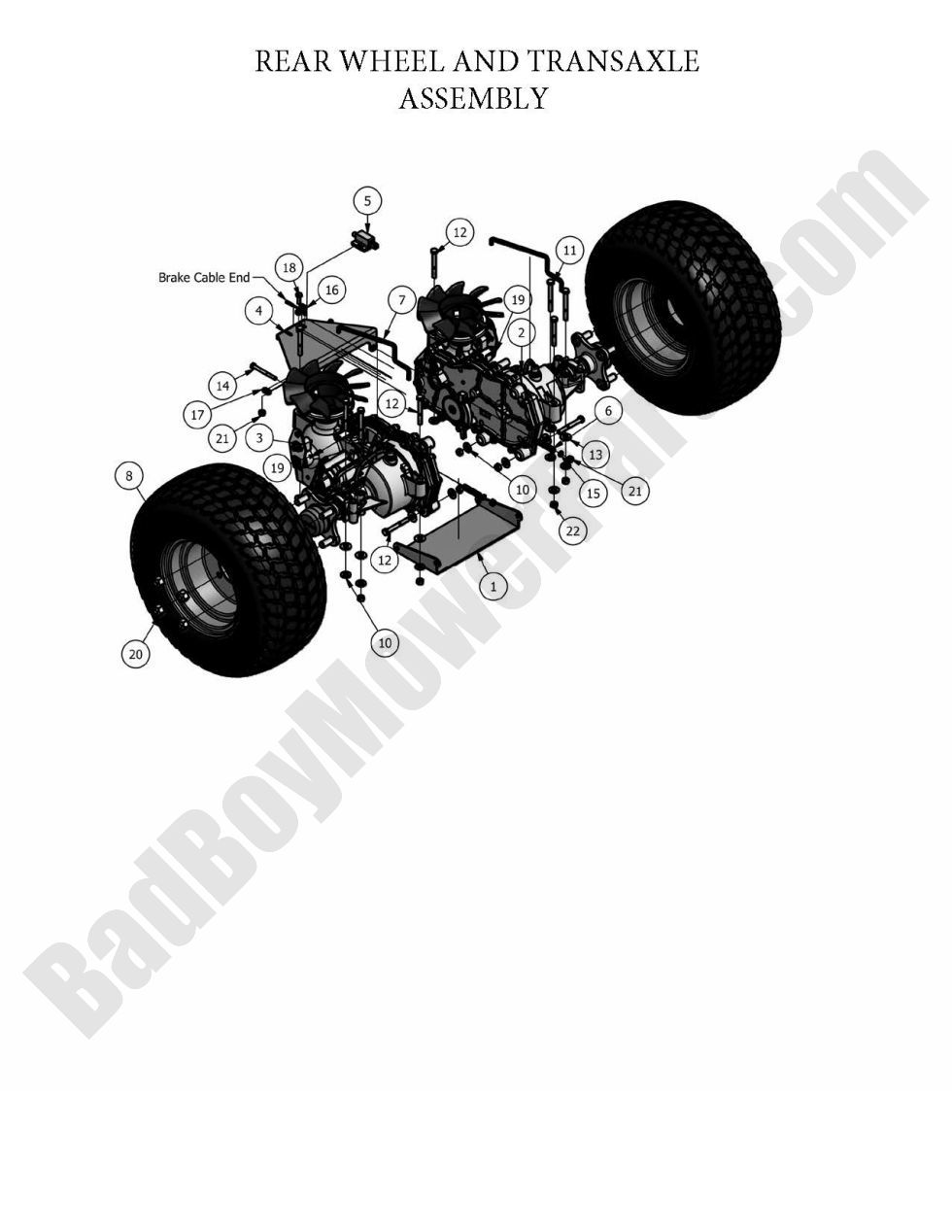

2010 MZ - Transaxle

2010 MZ - Transaxle

The 2010 MZ Transaxle is responsible for smooth power transfer, ensuring precise movement and superior control over your mower. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including transaxles, gears, drive belts, and seals for maximum efficiency. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for durability and longevity. Using our Bad Boy Mower Part diagrams, you can quickly find and order the exact transaxle components for easy installation. Routine maintenance prevents gear wear, enhances performance, and extends the overall lifespan of your mower. With access to Bad Boy Parts Online, ordering replacement transaxle components is quick and simple. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 MZ Transaxle is now more budget-friendly. Order today to ensure smooth handling, seamless power transfer, and long-lasting performance on every mow.

Bad Boy Mower Parts Lookup

2010 MZ - Transaxle
  Position Number SKU Product Title Price
1 201-2020-00 201-2020-00 - MZ Transaxle Support (Lower)
$19.81
2 050-4000-00 050-4000-00 - EZT - Right - MZ Models use 050-4030-00 (obsolete)
use part #050-4030-00
$999.99
3 050-4050-00 050-4050-00 - EZT - Left - MZ Models use 050-4031-00 (obsolete)
use part #050-4031-00
$999.99
4 039-1124-00 039-1124-00 - Brake Lock Bracket
$9.89
5 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
6 034-3050-00 034-3050-00 - Spring-Brake Lock Bracket MZ
$2.99
7 028-0060-00 028-0060-00 - Brake Release Bar (See Models Used On For Detail)
$7.28
8 022-8050-00 022-8050-00 - 18x9.50-8 Tire and Wheel Assembly (One Tire & Rim Assy)
$229.99
10 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
11 018-0003-00 018-0003-00 - 5/16-18 X 2-3/4 Bolt -
$2.99
12 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
13 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
14 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
15 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
16 018-8057-00 018-8057-00 - 10-24 X 3/4 Button Screw
$2.99
17 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
18 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
19 025-2025-00 025-2025-00 - MZ Tank Spacer
$2.99
20 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
21 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
22 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
