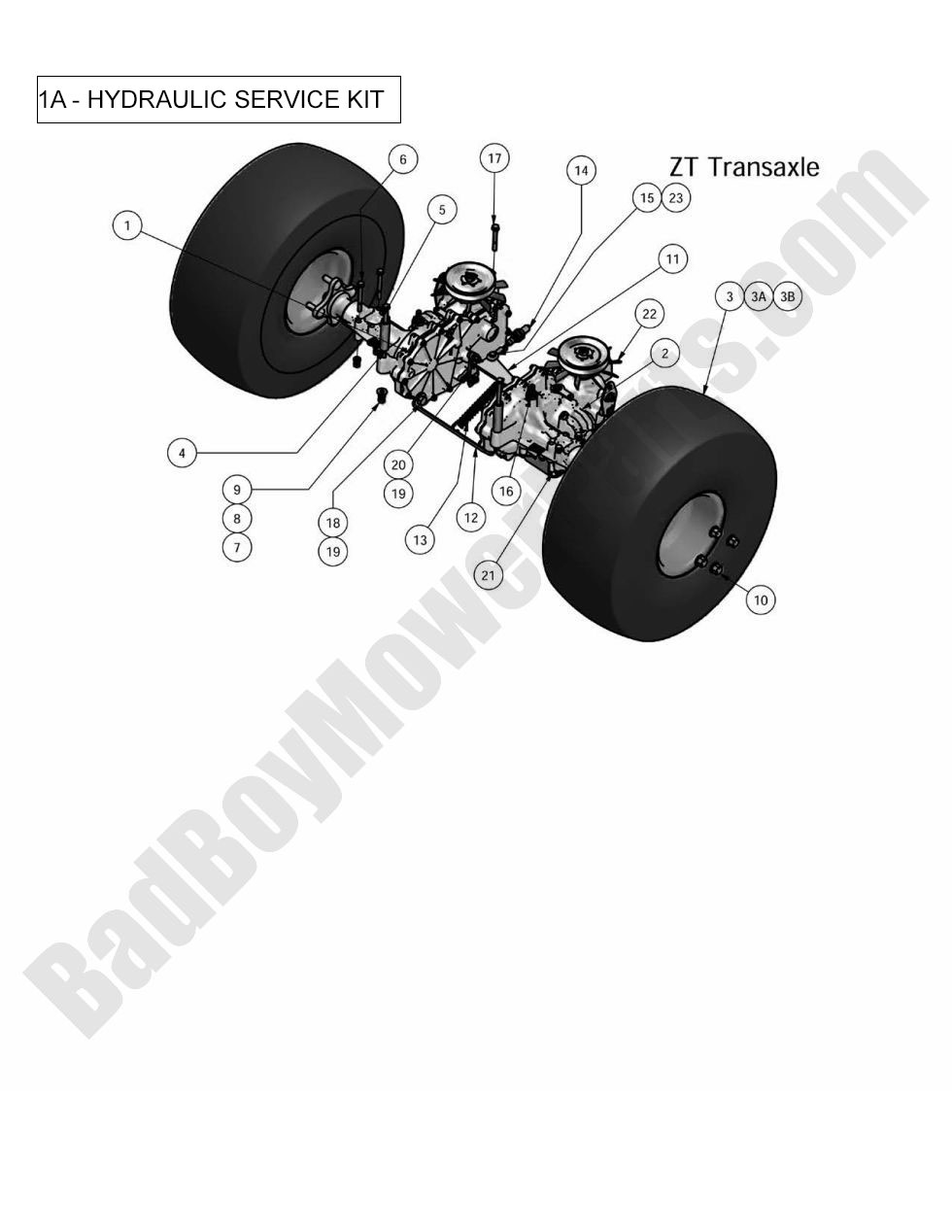

2010 ZT - Transaxle

2010 ZT - Transaxle

The 2010 ZT Transaxle is a vital component that ensures smooth power transmission and efficient movement across various mowing terrains. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts, including transaxles, hydro pumps, seals, filters, and fluid reservoirs to maintain peak performance. Our Bad Boy Lawn Mower Parts inventory guarantees factory-quality replacements designed for long-lasting durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct transaxle components for easy installation. Routine maintenance prevents hydraulic leaks, enhances power efficiency, and extends the lifespan of your mower’s drivetrain. With access to Bad Boy Parts Online, ordering essential transaxle parts is quick and hassle-free. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 ZT Transaxle is now more cost-effective. Order today to ensure smooth operation, reliable traction, and long-lasting performance for all your mowing needs.

Bad Boy Mower Parts Lookup

2010 ZT - Transaxle
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 050-2081-00 050-2081-00 - Left ZT Transaxle ZL-KCEE-3BKC-1RXX (obsolete)
use part #050-2096-01
$729.99
2 050-2080-00 050-2080-00 - Right ZT Transaxle ZL-GCEE-3BKV-1RXX - Obsolete - USE PART #050-2095-01 (obsolete)
use part #050-2095-01
$729.99

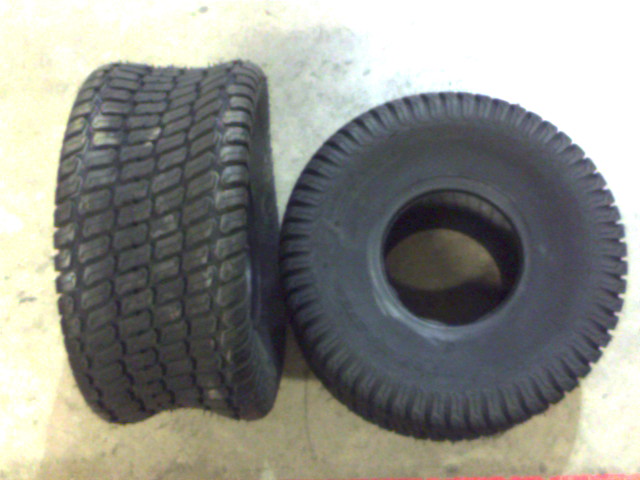

3A 022-6001-00 022-6001-00 - 20x10-8 Turf Tire Kenda (One Tire Only)
$121.99

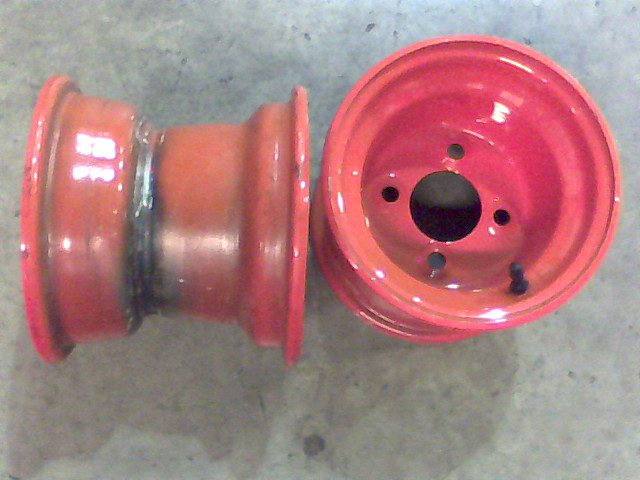

3B 022-6002-00 022-6002-00 - 8 inch Wheel for ZT Wheel for a 022-6000-00 (One Rim Only)
$122.99
3 022-6000-00 022-6000-00 - 20x10.50-8 Tire/Wheel Assy Carlisle Tire (Priced Per Assembly) for 022-6002-00
$174.99
4 025-5340-00 025-5340-00 - .365 ID X .752 OD X 3.313 Length Spacer Zinc
$8.74
5 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
6 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
10 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
11 039-0053-00 039-0053-00 - Crossover Brake Bracket
$14.19
12 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
13 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
14 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
15 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
16 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
17 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
18 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
19 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
20 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
21 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
22 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
23 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
