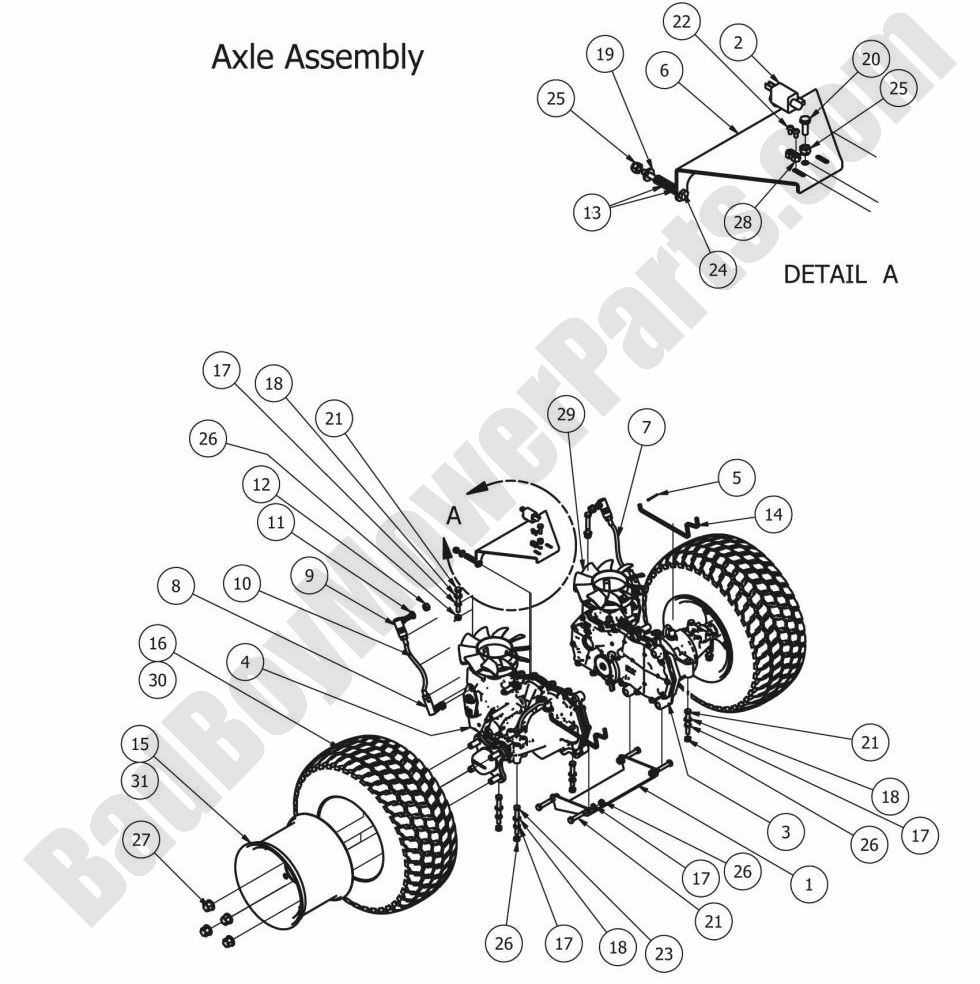

2012 MZ - Transaxle

2012 MZ - Transaxle

The 2012 MZ Transaxle is a critical component of your Bad Boy mower's drive system, providing power from the engine to the wheels. If you notice sluggish movement or difficulty in driving, the transaxle may be the issue. BadBoyMowerParts.com has a complete selection of Bad Boy Mower Parts, including transaxles specifically designed for the 2012 MZ mower. Our website features clear Bad Boy Mower Part diagrams, making it easy to identify and order the right transaxle for your needs. Whether you need a complete replacement or just a few components, we provide high-quality, durable parts that will restore your mower’s performance. Bad Boy Lawn Mower Parts are engineered for long-lasting durability and efficiency, so you can enjoy smoother operation. Shopping Bad Boy Parts Online is fast and convenient, and you can trust us to provide only the best parts. And don’t forget, with Free Shipping On Orders Over $100, you can save on both parts and delivery when replacing your transaxle.

Bad Boy Mower Parts Lookup

2012 MZ - Transaxle
  Position Number SKU Product Title Price
1 201-2020-00 201-2020-00 - MZ Transaxle Support (Lower)
$19.81
2 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
3 050-4031-00 050-4031-00 - EZT - Left Transaxle- MZ Models ZC-DPBB-3DKC-1FPX
$999.99
4 050-4030-00 050-4030-00 - EZT - Right - MZ Models ZC-APBB-3DKB-1FPX
$999.99
5 040-2025-00 040-2025-00 - Cotter Pin-Brake Bar on MZ
$2.99
6 039-1124-00 039-1124-00 - Brake Lock Bracket
$9.89
8 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
9 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
11 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
13 034-3050-00 034-3050-00 - Spring-Brake Lock Bracket MZ
$2.99
14 028-0060-00 028-0060-00 - Brake Release Bar (See Models Used On For Detail)
$7.28
15 022-8026-00 022-8026-00 - Rear Wheel 48in MZ (One Rim Only)
$106.19
16 022-8025-00 022-8025-00 - 18x9.50-8 Rear Tire Only (One Tire Only)
$197.99
17 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
18 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
19 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
20 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
21 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
22 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
23 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
24 018-1076-00 018-1076-00 - 1/4-20 x 2-1/2 Gr2 Hex C/S Zinc
$2.99
25 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
26 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
27 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
28 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
29 050-2074-00 050-2074-00 - Fan/Pulley Kit for 2012-2016 MZ/MZ Magnum
$65.26
30 022-8027-00 022-8027-00 - 18x8.50-8 Rear Tire Only 42 MZ (One Tire Only)
$136.99
31 022-8028-00 022-8028-00 - Rear Wheel 42in MZ (One Rim Only)
$85.27
