2012 ZT Transaxle

Transaxle

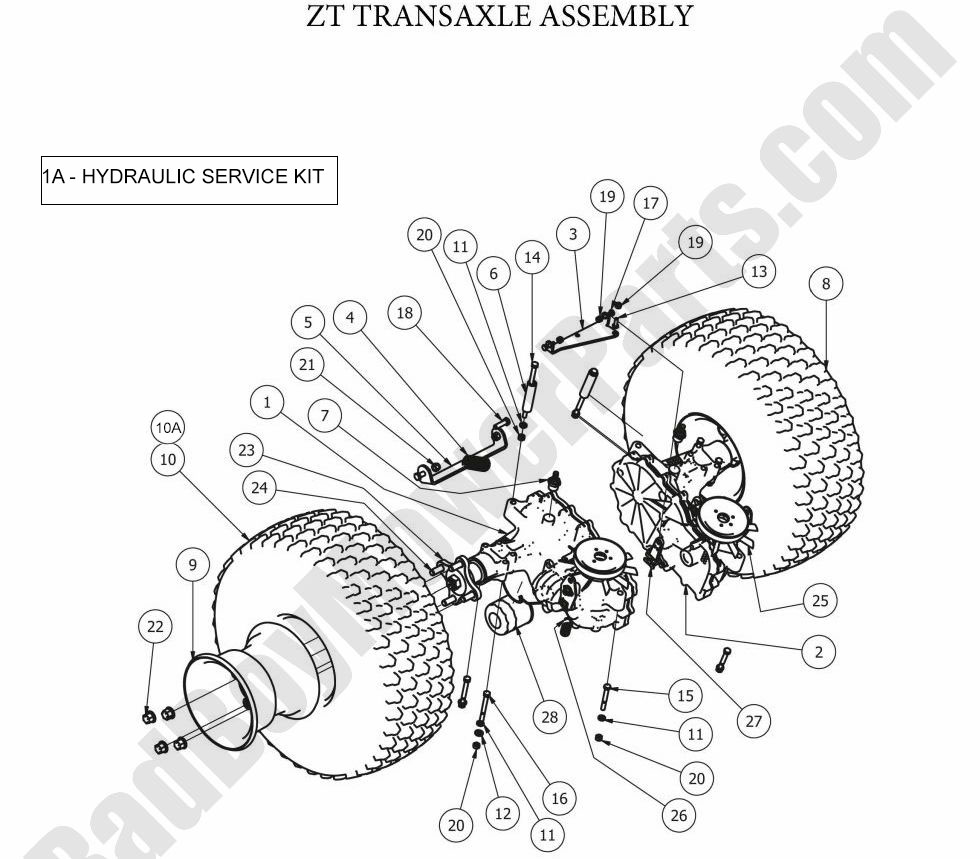

The Bad Boy Mower parts diagram for the 2012 ZT Transaxle is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 ZT models. Find all of your Bad Boy mowers 2012 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 ZT Transaxle. If you are not able to find the Bad Boy parts for your 2012 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 ZT Transaxle
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - 2020 Models and Older - ZT2800 - ZT3100 - ZT3200 & ALL ZT3400 Hydro Service Package With Expansion Tanks
$104.74
1 050-2080-00 050-2080-00 - Right ZT Transaxle ZL-GCEE-3BKV-1RXX (obsolete)
use part #050-2095-01
$781.09
2 050-2081-00 050-2081-00 - Left ZT Transaxle ZL-KCEE-3BKC-1RXX (obsolete)
use part #050-2096-01
$781.09
3 039-0053-00 039-0053-00 - Crossover Brake Bracket
$14.19
4 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
5 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
6 025-5340-00 025-5340-00 -.365 ID X.752 OD X 3.313Lengt h Spacer Zinc
$8.74
7 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
8 022-6000-00 022-6000-00 - 20x10.50-8 Tire/Wheel Assy Carlisle Tire (Priced Per Assembly) for 022-6002-00
$186.99
9 022-6002-00 022-6002-00 - 8 inch Wheel for ZT Wheel for a 022-6000-00 (One Rim Only)
$96.29
10A 022-6001-00 022-6001-00 - 20x10-8 Turf Tire Kenda (One Tire Only)
$128.99
10 022-6003-00 022-6003-00 - 20x10.50-8 Turf Tire (One Tire Only)
$139.99
11 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
12 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
13 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
14 018-5355-00 018-5355-00 - 5/16-18 X 6 GR 5 Hex Bolt Zinc
$2.99
15 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
16 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
17 018-4007-00 018-4007-00 - 1/4-20 X 1 GR 5 Hex Bolts Zinc
$2.99
18 018-3000-00 018-3000-00 - 3/8-16 X 2 GR 5 Hex Bolts Zinc
$2.99
19 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
20 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
21 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
22 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
23 050-2076-00 050-2076-00 - ZT Transaxle Wheel Hub
$90.56
24 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
25 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
26 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
27 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
28 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
