2013 MZ Magnum Transaxle

Transaxle

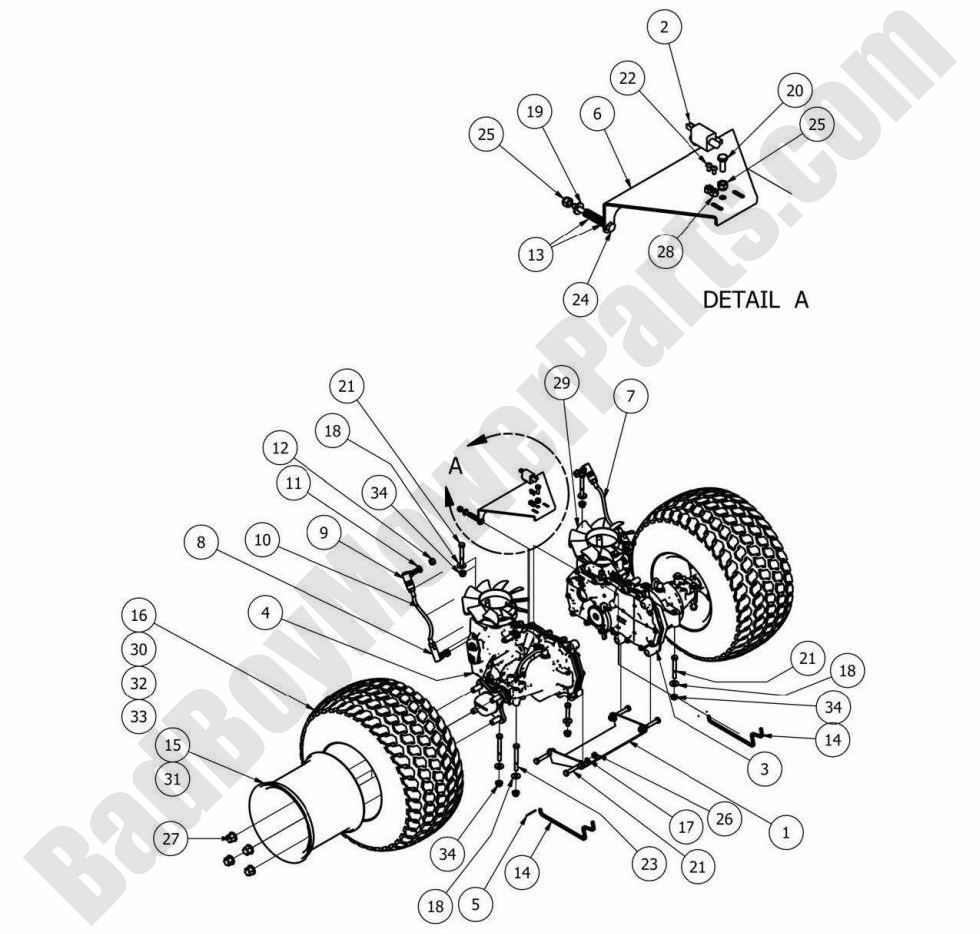

The Bad Boy Mower parts diagram for the 2013 MZ Magnum Transaxle is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 MZ Magnum models. Find all of your Bad Boy mowers 2013 MZ Magnum parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 MZ Magnum Transaxle. If you are not able to find the Bad Boy parts for your 2013 MZ Magnum please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 MZ Magnum Transaxle
  Position Number SKU Product Title Price
1 201-2020-00 201-2020-00 - MZ Transaxle Support (Lower)
$19.81
2 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
3 050-4030-00 050-4030-00 - EZT - Right - MZ Models ZC-APBB-3DKB-1FPX
$855.99
4 050-4031-00 050-4031-00 - EZT - Left - MZ Models ZC-DPBB-3DKC-1FPX
$855.99
5 040-2025-00 040-2025-00 - Cotter Pin-Brake Bar on MZ
$2.99
6 039-1124-00 039-1124-00 - Brake Lock Bracket
$8.74
8 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
9 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
11 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
13 034-3050-00 034-3050-00 - Spring-Brake Lock Bracket MZ
$2.99
14 028-0060-00 028-0060-00 - Brake Release Bar (See Models Used On For Detail)
$7.28
15 022-8026-00 022-8026-00 - Rear Wheel 48in MZ (One Rim Only)
$113.62
16 022-8025-00 022-8025-00 - 18x9.50-8 Rear Tire Only (One Tire Only)
$203.99
17 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
18 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
19 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
20 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
21 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
22 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
23 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
24 018-1076-00 018-1076-00 - 1/4-20 x 2-1/2 Gr2 Hex C/S Zinc
$2.99
25 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
26 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
27 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
28 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
29 050-2074-00 050-2074-00 - Fan/Pulley Kit for 2012-2016 MZ/MZ Magnum
$63.96
30 022-8027-00 022-8027-00 - 18x8.50-8 Rear Tire Only 42 MZ (One Tire Only)
$145.99
31 022-8028-00 022-8028-00 - Rear Wheel 42in MZ (One Rim Only)
$85.27
32 022-8050-00 022-8050-00 - 18x9.50-8 Tire and Wheel Assembly (One Tire & Rim Assy)
$246.99
33 022-2050-00 022-2050-00 - 18x8.50-8 w/8" Tire & Wheel Assembly Fits 42" MZ
$174.99
34 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
