2018 Compact Outlaw - Transaxle Assembly

2018 Compact Outlaw - Transaxle Assembly

The transaxle assembly in the 2018 Compact Outlaw is responsible for delivering power from the engine to the wheels, ensuring smooth and efficient movement. If your mower is experiencing power transmission issues, it may be time to replace or repair the transaxle components. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to keep your transaxle assembly in top shape. From hydro pumps and seals to complete transaxle units, our Bad Boy Mower Part diagrams make finding the right parts simple. Our Bad Boy Lawn Mower Parts ensure durability and performance. Shopping Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can keep your mower running smoothly while saving on essential repairs.

Bad Boy Mower Parts Lookup

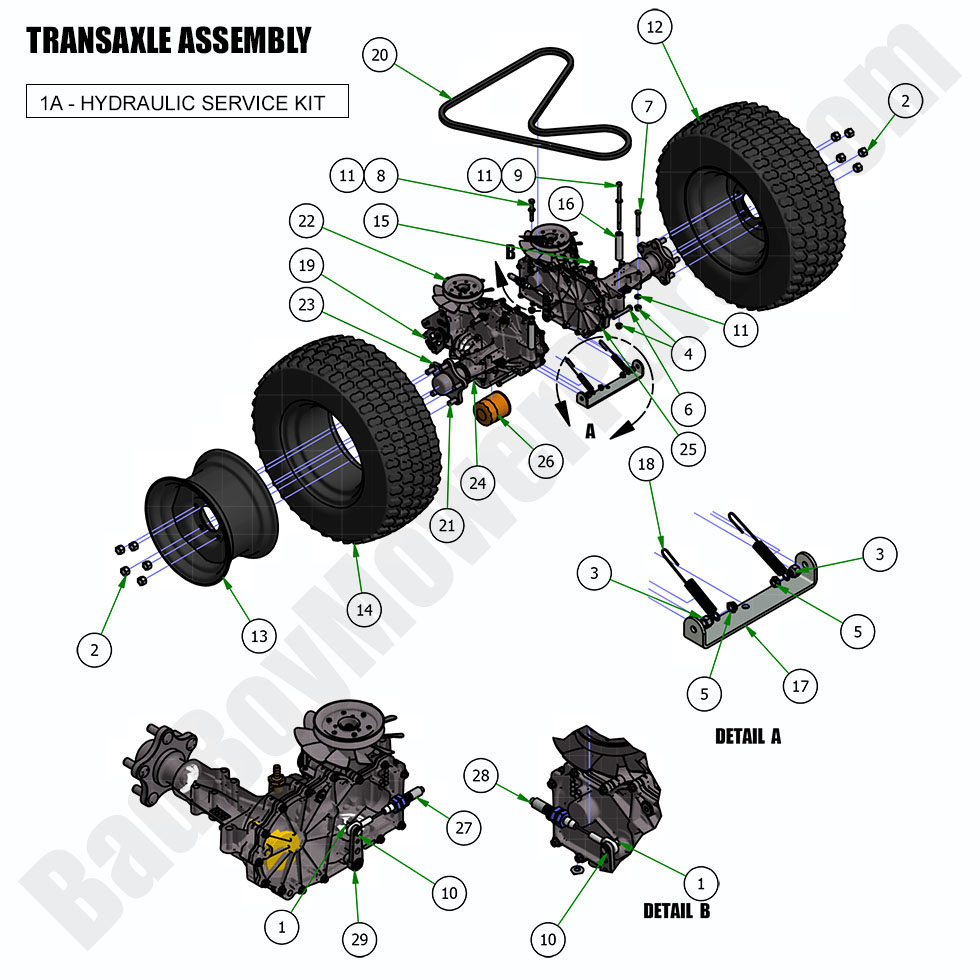

2018 Compact Outlaw - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
3 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
6 018-2071-00 018-2071-00 - 3/8 x 2 1/2 Hex Tap Bolt - Ful l Thread - ACS
$2.99
7 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
8 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
9 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
10 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
11 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
12 022-3010-00 022-3010-00 - 23x8.50-12 Tire Assembly-Black
$247.99
13 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$109.99
14 022-3025-00 022-3025-00 - 23 x 8.50 - 12 Turf Tire
$236.99
15 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
16 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
17 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
18 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
19 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
20 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
21 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
22 050-2072-00 050-2072-00 - Fan/Pulley Kit
$63.96
23 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
24 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-02
$819.99
25 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-02
$819.99
26 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
27 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
28 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
29 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
