2011 MZ Transaxles

Transaxles

The Bad Boy Mower parts diagram for the 2011 MZ Transaxles is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 MZ models. Find all of your Bad Boy mowers 2011 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 MZ Transaxles. If you are not able to find the Bad Boy parts for your 2011 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

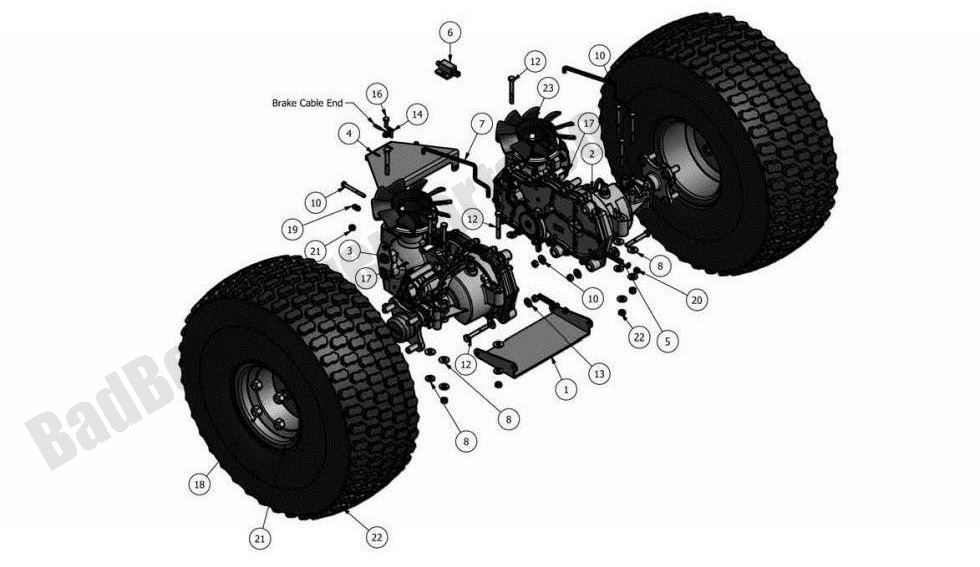

2011 MZ Transaxles
  Position Number SKU Product Title Price
1 201-2020-00 201-2020-00 - MZ Transaxle Support (Lower)
$19.81
2 050-4000-00 050-4000-00 - EZT - Right - MZ Models use 050-4030-00 (obsolete)
use part #050-4030-00
$855.99
3 050-4050-00 050-4050-00 - EZT - Left - MZ Models use 050-4031-00 (obsolete)
use part #050-4031-00
$855.99
4 039-1124-00 039-1124-00 - Brake Lock Bracket
$8.74
5 034-3050-00 034-3050-00 - Spring-Brake Lock Bracket MZ
$2.99
6 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
7 028-0060-00 028-0060-00 - Brake Release Bar (See Models Used On For Detail)
$7.28
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
10 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
12 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
13 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
14 018-8057-00 018-8057-00 - 10-24 X 3/4 BS C/S 18-8 SS
$2.99
16 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
17 025-2025-00 025-2025-00 - MZ Tank Spacer
$2.99
18 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
19 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
20 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
21 022-8050-00 022-8050-00 - 18x9.50-8 Tire and Wheel Assembly (One Tire & Rim Assy)
$246.99
22 022-2050-00 022-2050-00 - 18x8.50-8 w/8" Tire & Wheel Assembly Fits 42" MZ
$174.99
23 050-4502-00 050-4502-00 - MZ Transaxle Fan-2011 & older
$17.73
