2014 ZT Elite - Drive Arm Assembly

2014 ZT Elite - Drive Arm Assembly

A functioning Drive Arm Assembly is essential for your 2014 ZT Elite to maintain its driving capabilities and ensure smooth operation. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts, including this critical component. Our Bad Boy Lawn Mower Parts are designed for long-lasting performance, so you can be sure that your mower will continue to run smoothly and efficiently. Whether you’re looking for a replacement or performing preventive maintenance, our Bad Boy Mower Part diagrams will help you find the exact part you need. When you shop Bad Boy Parts Online, you gain access to excellent pricing and professional customer support. Plus, we offer Free Shipping On Orders Over $100, making it even easier to get the parts you need at an affordable price. Upgrade your Drive Arm Assembly today and keep your 2014 ZT Elite running smoothly.

Bad Boy Mower Parts Lookup

2014 ZT Elite - Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 027-8900-00 027-8900-00 - Drive Lever Housing (Left)2013 cZT, ZT, (obsolete)
use part #031-0017-98
$31.23
2 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
3 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
4 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
5 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
6 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99

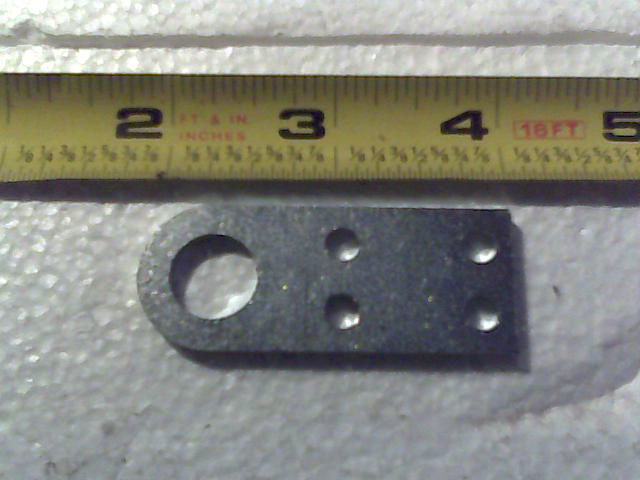

7 039-1125-00 039-1125-00 - MZ Switch Bracket
$5.22
8 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
9 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
10 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
11 032-5000-00 032-5000-00 - 1/2" Oil Impregnated Bushing
$3.78
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
13 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
14 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
15 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
16 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
17 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
18 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
19 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
20 087-3000-00 087-3000-00 - Steering Damper (obsolete)
use part #087-0001-00
$62.40
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
22 031-8850-98 031-8850-98 - OBSOLETE USE Part # 031-8850-70 Left Steering Arm Assembly Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-8850-70
$93.64
23 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
24 069-4007-00 069-4007-00 - Rubber Steering Arm USE 069-4010-00 (obsolete)
use part #069-4010-00
$8.12
25 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
26 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
27 027-8901-00 027-8901-00 - 2013-2015 ZT/CZT, 2013-2016 Outlaw, 2016 Maverick Drive Lever Housing (Right)
$14.19
28 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
29 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
30 031-8851-98 031-8851-98 - OBSOLETE USE Part # 031-8851-70 Right Steering Arm Assembly Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-8851-70
$93.64
31 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
