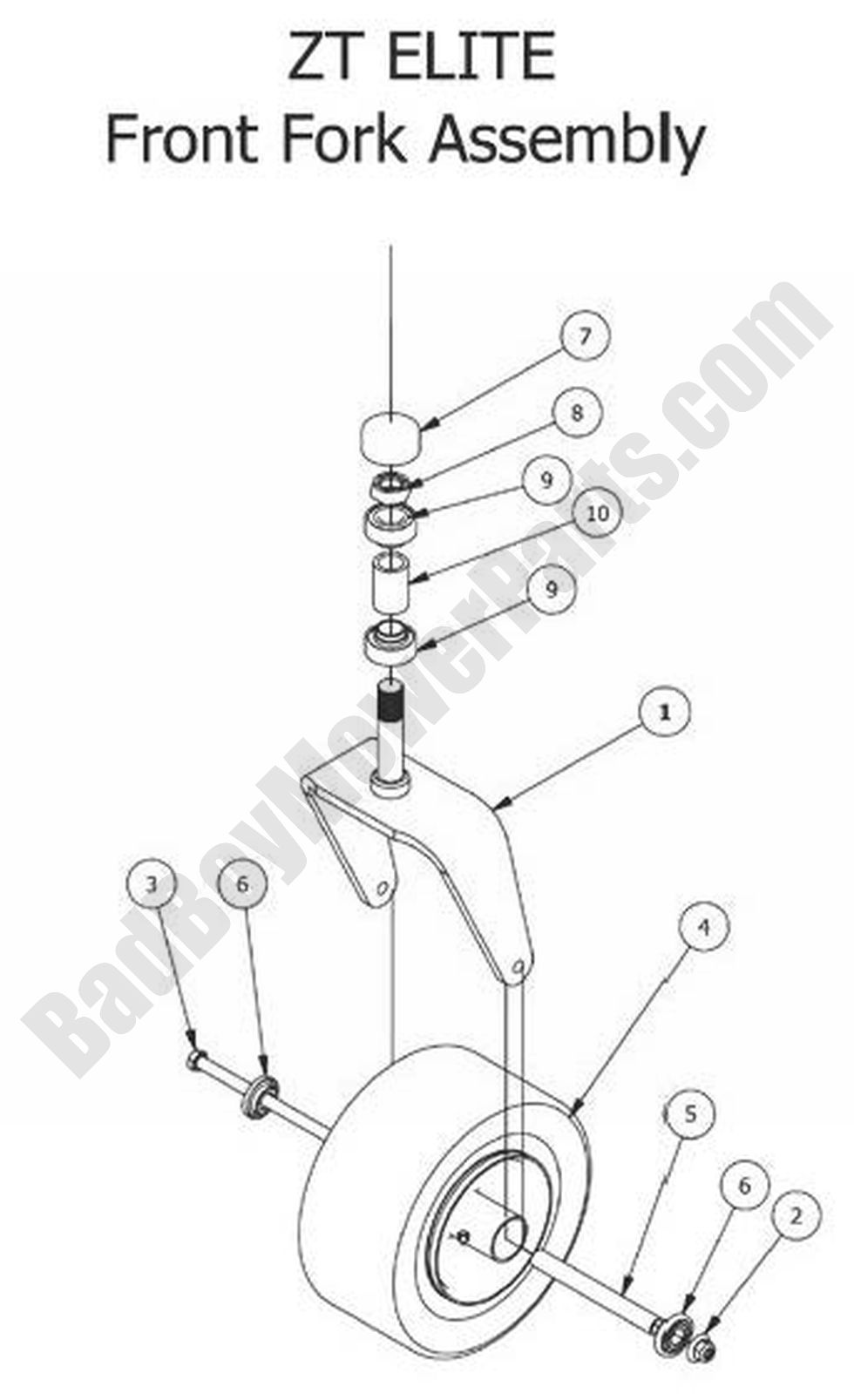

2014 ZT Elite - Front Fork Assembly

2014 ZT Elite - Front Fork Assembly

The 2014 ZT Elite Front Fork Assembly is essential for smooth steering and maneuverability of your mower. At BadBoyMowerParts.com, we carry a full range of Bad Boy Mower Parts, including this important assembly. Our Bad Boy Lawn Mower Parts are designed for reliability and performance, so you can trust that your 2014 ZT Elite will continue to deliver top-notch results. With our Bad Boy Mower Part diagrams, locating the perfect front fork assembly for your mower is quick and easy. Shopping Bad Boy Parts Online allows you to access all the parts you need for repairs or upgrades, with the added benefit of Free Shipping On Orders Over $100. Keep your mower in excellent condition and ensure its performance by purchasing the right Front Fork Assembly from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2014 ZT Elite - Front Fork Assembly
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$139.99
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
4 022-2006-00 022-2006-00 - 13 x 6.50 - 6 Orange Tire and Wheel Assembly
$119.99
5 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
6 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
7 014-2050-00 014-2050-00 - Rubber Caster Bearing Cover (See Models Used On For Details)
$3.73
8 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
9 010-2000-00 010-2000-00 - Front Fork Caster Bearing (See Models Used On For Details)
$16.68
10 025-0004-00 025-0004-00 - Caster Bearing Spacer (See Models Used On For Details)
$12.77
