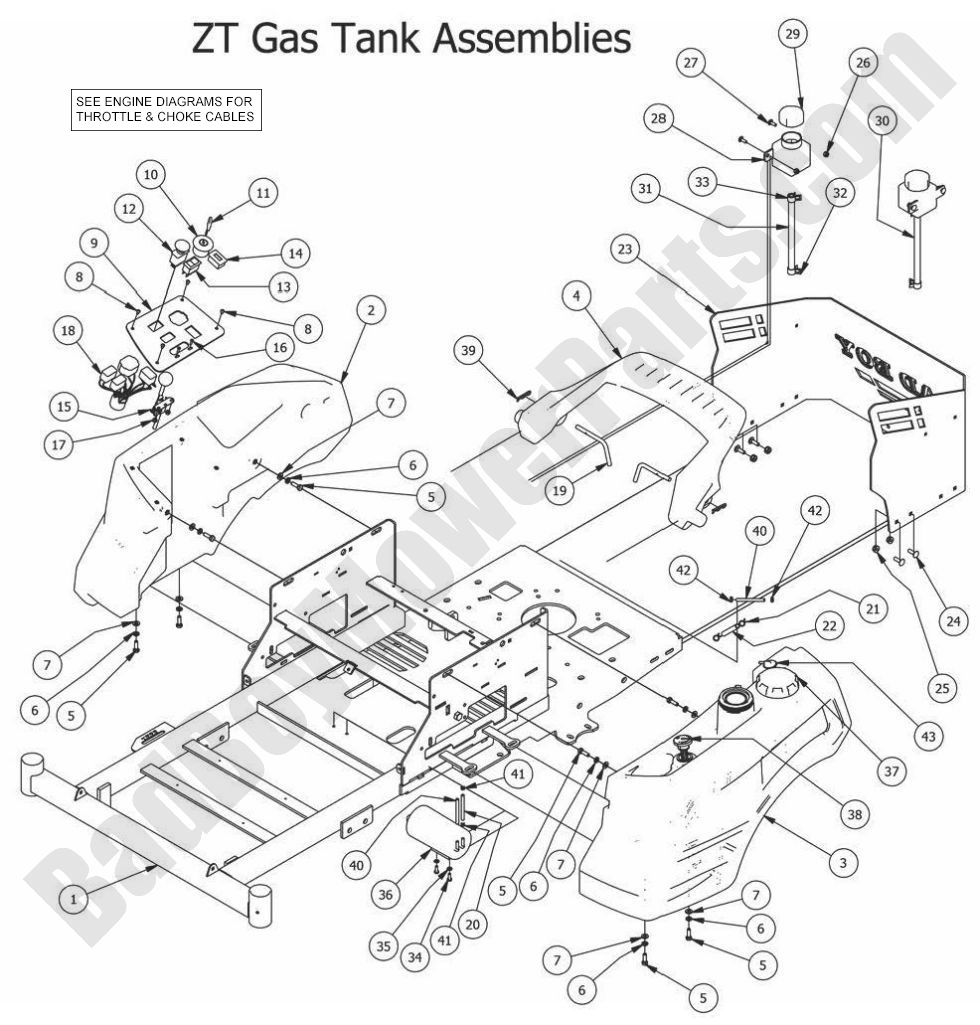

2014 ZT Elite - Gas Tank Assembly

2014 ZT Elite - Gas Tank Assembly

The 2014 ZT Elite Gas Tank Assembly is crucial for storing and supplying fuel to your mower's engine, ensuring uninterrupted operation. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts to keep your mower running smoothly, including the Gas Tank Assembly for the 2014 ZT Elite. Our Bad Boy Lawn Mower Parts are made to last, and with the help of our Bad Boy Mower Part diagrams, you can easily find the specific parts you need. Whether you need a complete replacement or individual components, our online store provides a convenient way to purchase Bad Boy Parts Online. Plus, with Free Shipping On Orders Over $100, it’s even easier to maintain your mower. Shop today for the Gas Tank Assembly you need to keep your 2014 ZT Elite fueled and ready for action.

Bad Boy Mower Parts Lookup

2014 ZT Elite - Gas Tank Assembly
  Position Number SKU Product Title Price
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99
2 067-1000-50 067-1000-50 - 2014-2016 ZT Right Side Console
$199.99

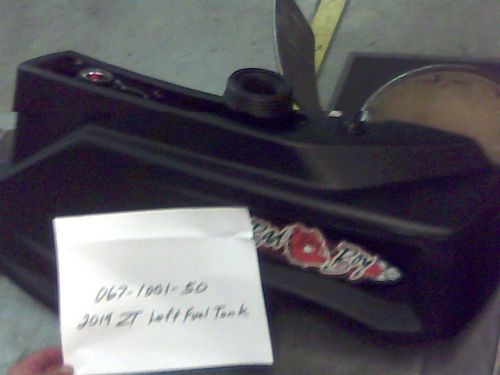

3 067-1001-50 067-1001-50 - 2014-2016 ZT Left Fuel Tank
$449.99

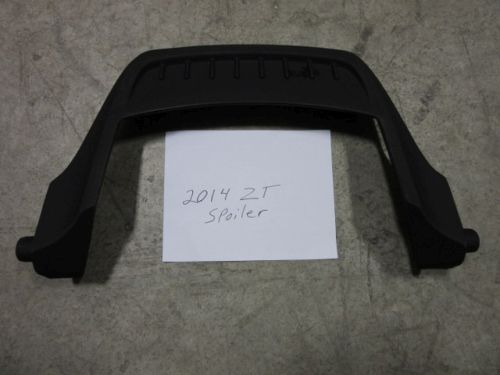

4 067-1050-50 067-1050-50 - 2014-2016 ZT Spoiler
$85.59
5 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
6 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
8 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
9 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
10 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
11 042-9000-00 042-9000-00 - Ignition Key
$4.06
12 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
13 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
14 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
16 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
17 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
18 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99

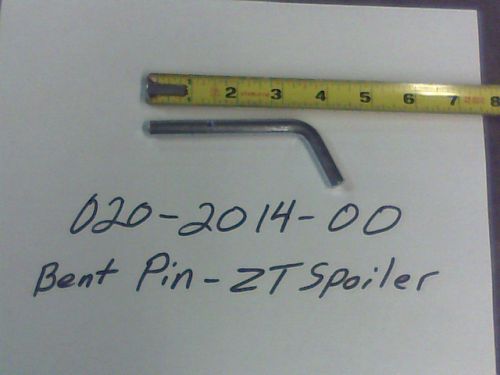

19 020-2014-00 020-2014-00 - Bent Pin For Spoiler 2014-2016 ZT
$7.36
20 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
21 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
22 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41

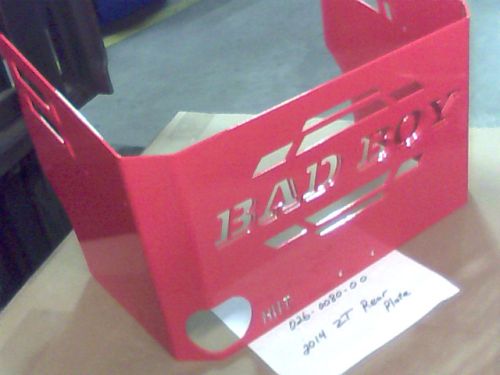

23 026-0080-00 026-0080-00 - Rear Plate (See Models Used On For Details)
$229.99
24 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
25 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
26 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
27 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
28 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
29 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60

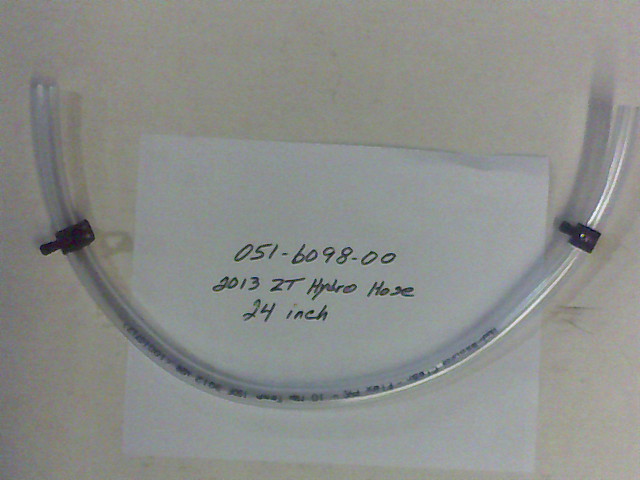

30 051-6098-00 051-6098-00 - 2013-2014 ZT/CZT Hydraulic Hose Assembly
$7.28
31 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
32 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
34 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
35 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
36 067-0020-00 067-0020-00 - Carbon Canister
$62.40
37 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
38 067-4080-00 067-4080-00 - Fuel Gauge (See Models Used On For Details)
$32.09

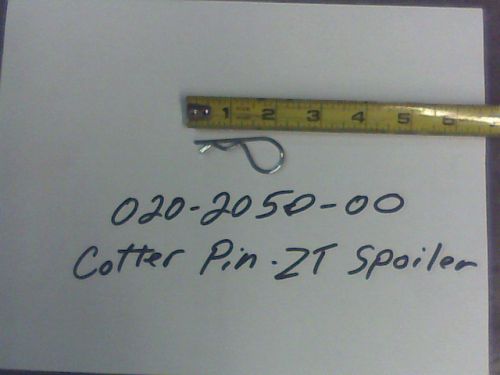

39 020-2050-00 020-2050-00 - Cotter Pin-ZT Spoiler (See Models Used On For Details)
$2.99
40 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
41 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
42 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
43 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
