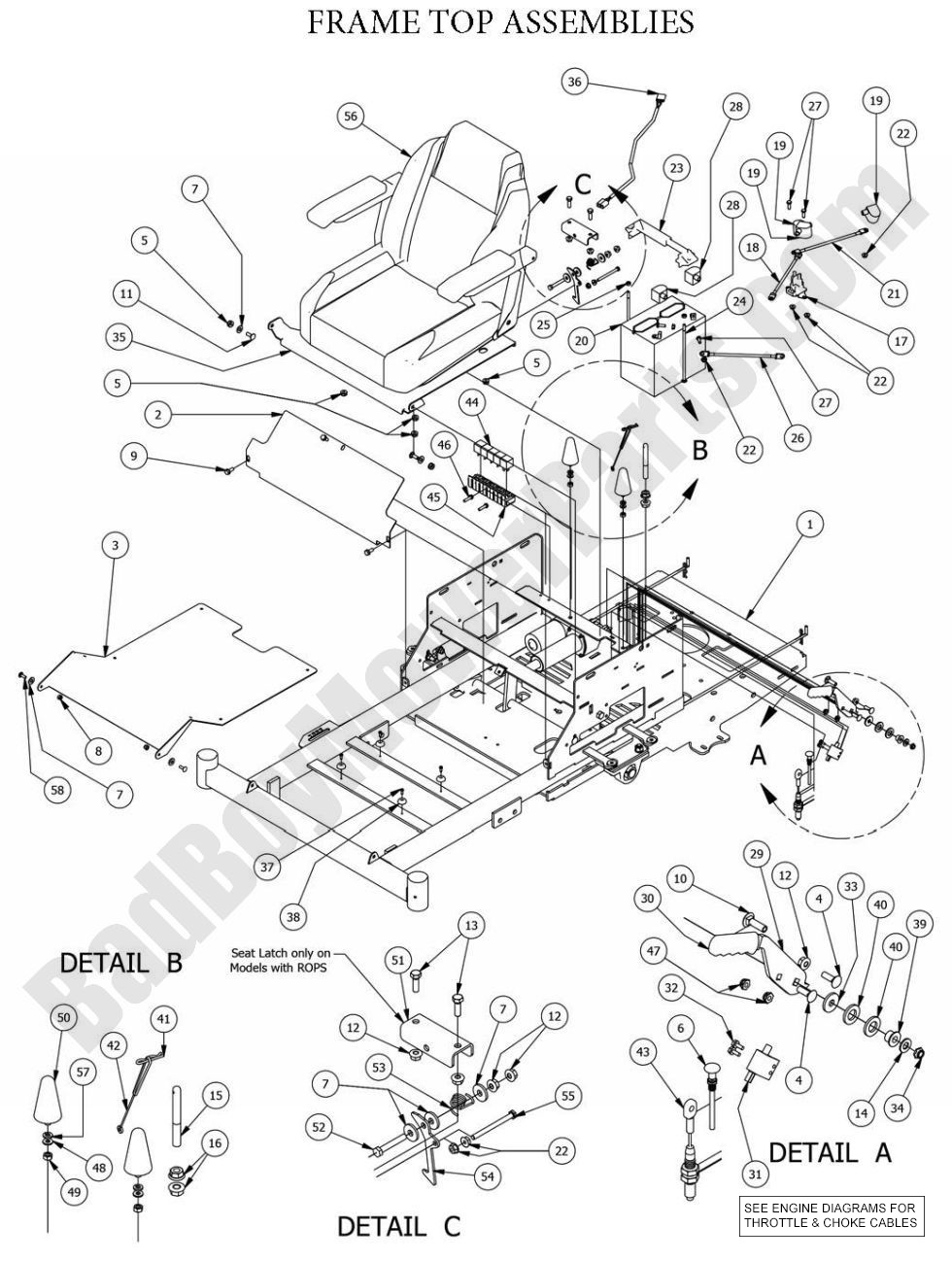

2014 ZT Elite - Top Frame Assembly

2014 ZT Elite - Top Frame Assembly

The 2014 ZT Elite Top Frame Assembly is a key structural component of your mower, providing stability and support. At BadBoyMowerParts.com, we offer a wide variety of Bad Boy Mower Parts, including this top frame assembly, designed for lasting durability. Our Bad Boy Lawn Mower Parts are manufactured to keep your 2014 ZT Elite performing at its best, even in demanding conditions. Using our Bad Boy Mower Part diagrams, you can easily find the right parts for your mower, ensuring a perfect fit. When you shop Bad Boy Parts Online, you gain access to affordable prices and superior service. Plus, enjoy Free Shipping On Orders Over $100 for a hassle-free experience. Get your Top Frame Assembly from BadBoyMowerParts.com and ensure that your 2014 ZT Elite is operating at its peak.

Bad Boy Mower Parts Lookup

2014 ZT Elite - Top Frame Assembly
  Position Number SKU Product Title Price
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99
2 014-3420-00 014-3420-00 - 2013-2015 CZT & 2013-2016 ZT Elite Cooler Cover
$64.19
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
8 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
9 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
10 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
11 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
12 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
13 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
14 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
15 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
16 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
17 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
18 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
19 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
21 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
22 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
23 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
24 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
25 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
26 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
27 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
28 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
29 069-1000-00 069-1000-00 - Brake Handle Cam Lever
$7.28
30 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
31 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
32 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
33 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
34 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
35 026-1013-00 026-1013-00 -Seat Plate (See Models Used On For Details)
$42.58
36 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
37 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
38 029-4010-00 029-4010-00 - Button Bumper
$2.99
39 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
40 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
41 040-6060-00 040-6060-00 - Seat Latch Pin (See Models Used On For Details)
$2.99
42 064-1000-00 064-1000-00 - Seat Pin Lanyard
$5.49
43 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
44 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
45 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99
46 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
47 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
48 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
49 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
50 034-1444-00 034-1444-00 - Rubber Cone (obsolete)
use part #034-8045-98
$29.80
51 039-2020-00 039-2020-00 - ZT/cZT Seat Latch Bracket
$21.39
52 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5)
$2.99
53 034-1075-00 034-1075-00 - Torsion Spring-Seat Latch
$5.49
54 031-0200-00 031-0200-00 - Seat Latch Lever
$2.99
55 018-2072-00 018-2072-00 - 1/4 x 3 Hex Bolt - Gr 8 - ACS
$2.99
56 071-2040-00 071-2040-00 - Black/Orange Seat 2018 & Older (See Models Used On For Details) (obsolete)
use part #071-2040-17
$559.99
57 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
58 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
