2013 MZ Control Panel

Control Panel

The Bad Boy Mower parts diagram for the 2013 MZ Control Panel is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 MZ models. Find all of your Bad Boy mowers 2013 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 MZ Control Panel. If you are not able to find the Bad Boy parts for your 2013 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

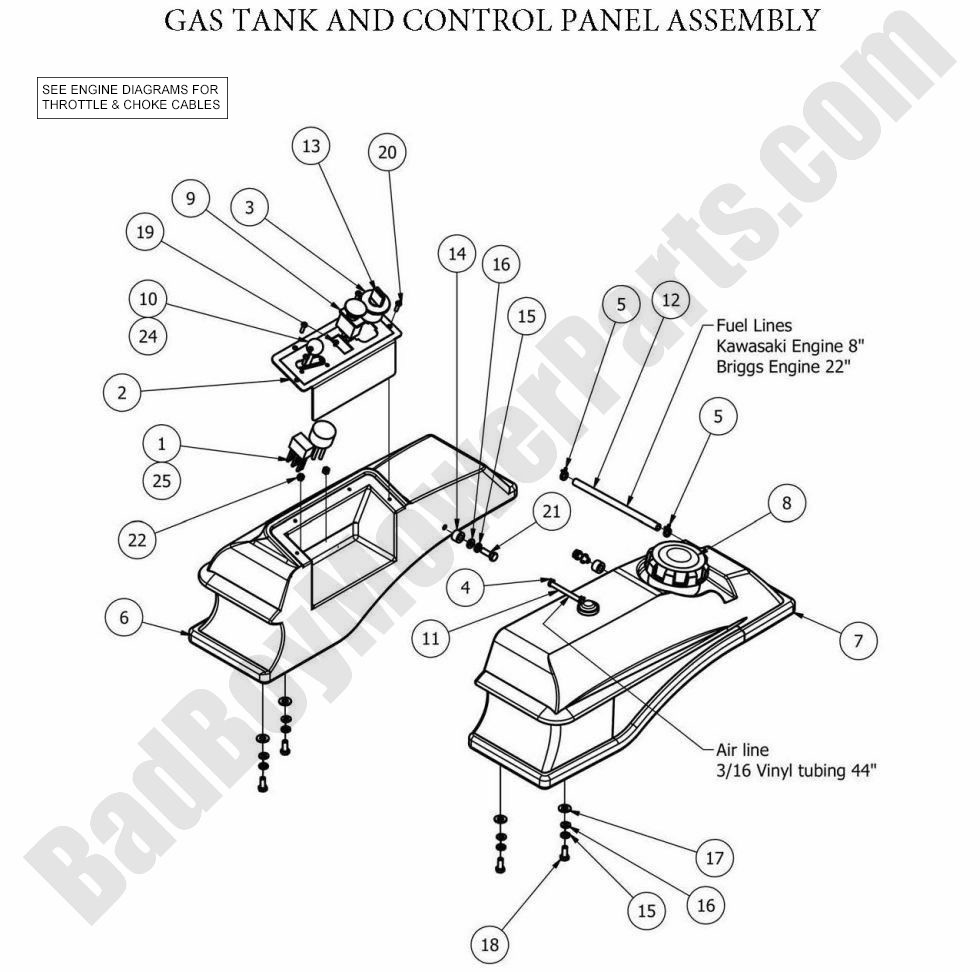

2013 MZ Control Panel
  Position Number SKU Product Title Price
1 086-0075-00 086-0075-00 - 2010-2015 Wiring Harness - MZ Models
$283.89
2 079-0050-00 079-0050-00 - 2010-2016 MZ Control Panel
$28.39
3 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
5 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
6 067-2001-00 067-2001-00 - Fender Console
$224.99
7 067-2000-50 067-2000-50 - 2010-2016 MZ/ 3 Gallon Fuel Tank
$305.99
8 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23
9 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
11 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
12 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
13 042-9000-00 042-9000-00 - Ignition Key
$4.06

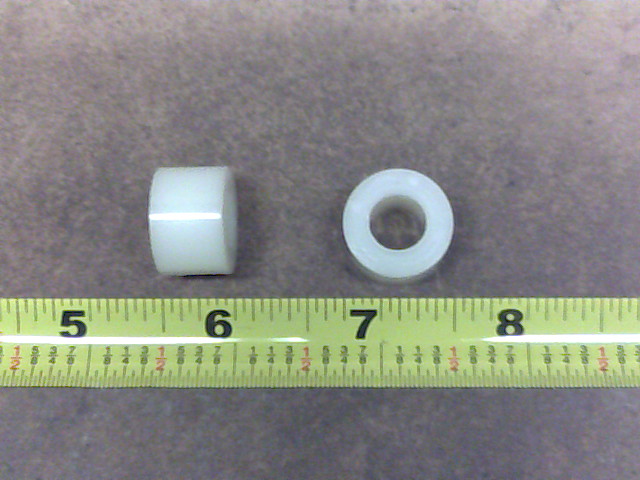

14 025-2025-00 025-2025-00 - MZ Tank Spacer
$2.99
15 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
16 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
17 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
18 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
19 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
20 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
21 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
22 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
25 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
