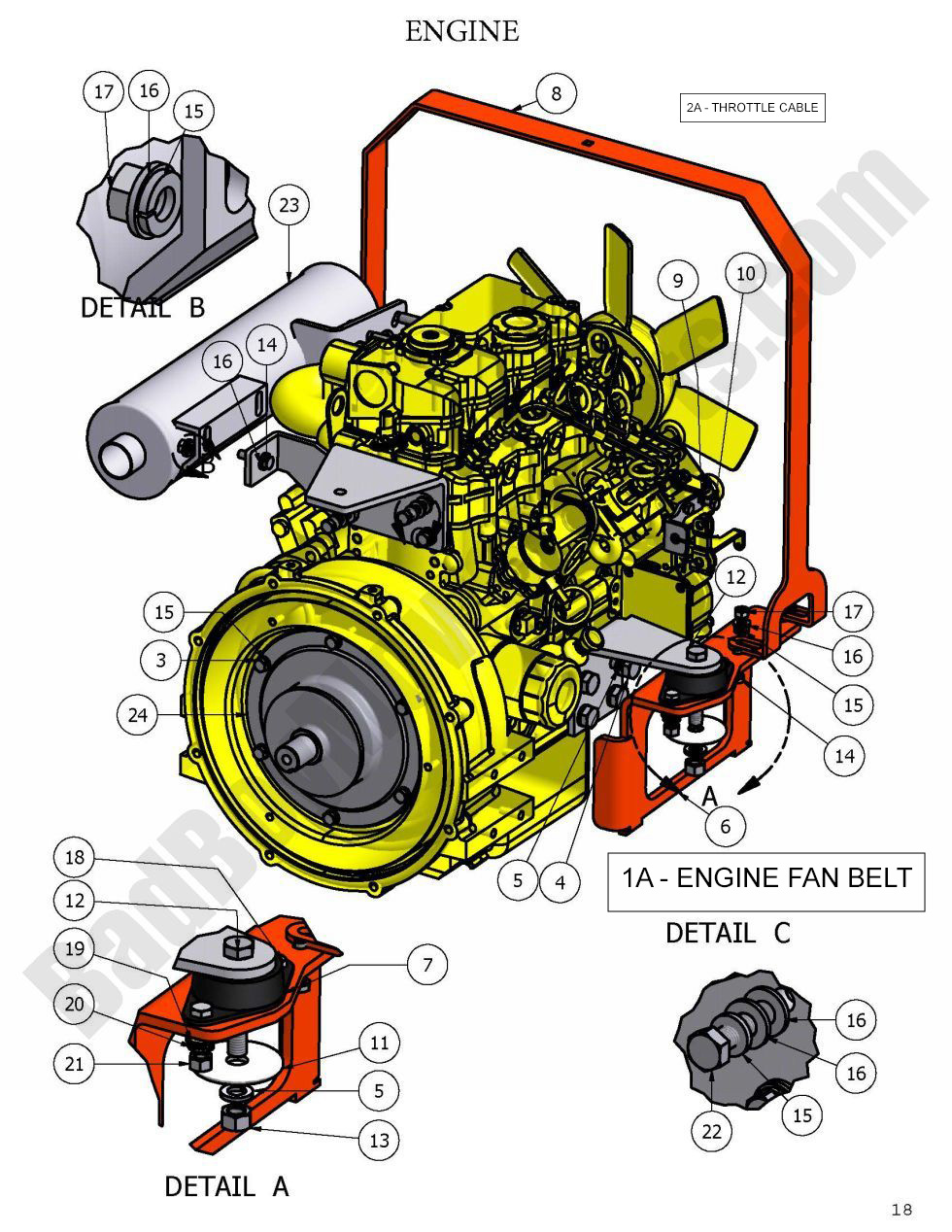

2009 Diesel - Engine

2009 Diesel - Engine

Your 2009 Diesel Engine is the heart of your Bad Boy Mower, and keeping it in optimal condition is essential for ensuring top performance. At BadBoyMowerParts.com, we offer a comprehensive selection of Bad Boy Mower Parts designed specifically for your engine. Whether you need a complete engine replacement or individual components such as belts, fuel filters, or spark plugs, we have it all. Our Bad Boy Mower Part Diagrams make it easy to identify the exact parts you need. If you're looking for Bad Boy Lawn Mower Parts, you’ll find high-quality replacements that are engineered to keep your engine running smoothly. We make it simple to shop Bad Boy Parts Online, offering competitive prices and a streamlined order process. Plus, don’t forget that we offer Free Shipping On Orders Over $100, making it even more affordable to get your engine parts delivered directly to your door. Shop now and keep your 2009 Diesel mower performing at its best.

Bad Boy Mower Parts Lookup

2009 Diesel - Engine
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
2A 055-8018-00 055-8018-00 - Throttle Cable (See Models Used On For Details)
$60.92
3 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
4 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
5 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
6 070-5510-00 070-5510-00 - 2008-2009 Diesel 3cyl Frame Suspension
$2099.99
6 070-5520-00 070-5520-00 - 2007-2020 Diesel 4cyl Frame Suspension
$2099.99
7 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53
8 201-8001-00 201-8001-00 - Hood Holder Diesel
$42.79
9 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
10 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99
11 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
12 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
16 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
17 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
18 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
19 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
20 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
21 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
22 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99

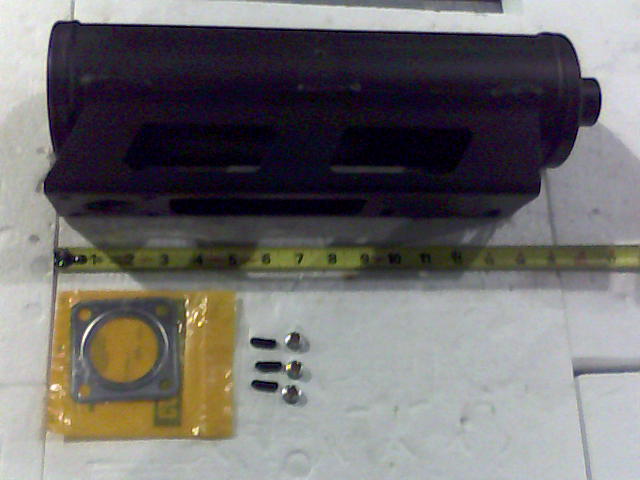

23 015-0005-00 015-0005-00 - Exhaust-28/35hp Caterpillar USE 015-0010-00 (obsolete)
use part #015-0010-00
$225.56
24 017-3000-00 017-3000-00 - Stub shaft- Diesel
$229.90
