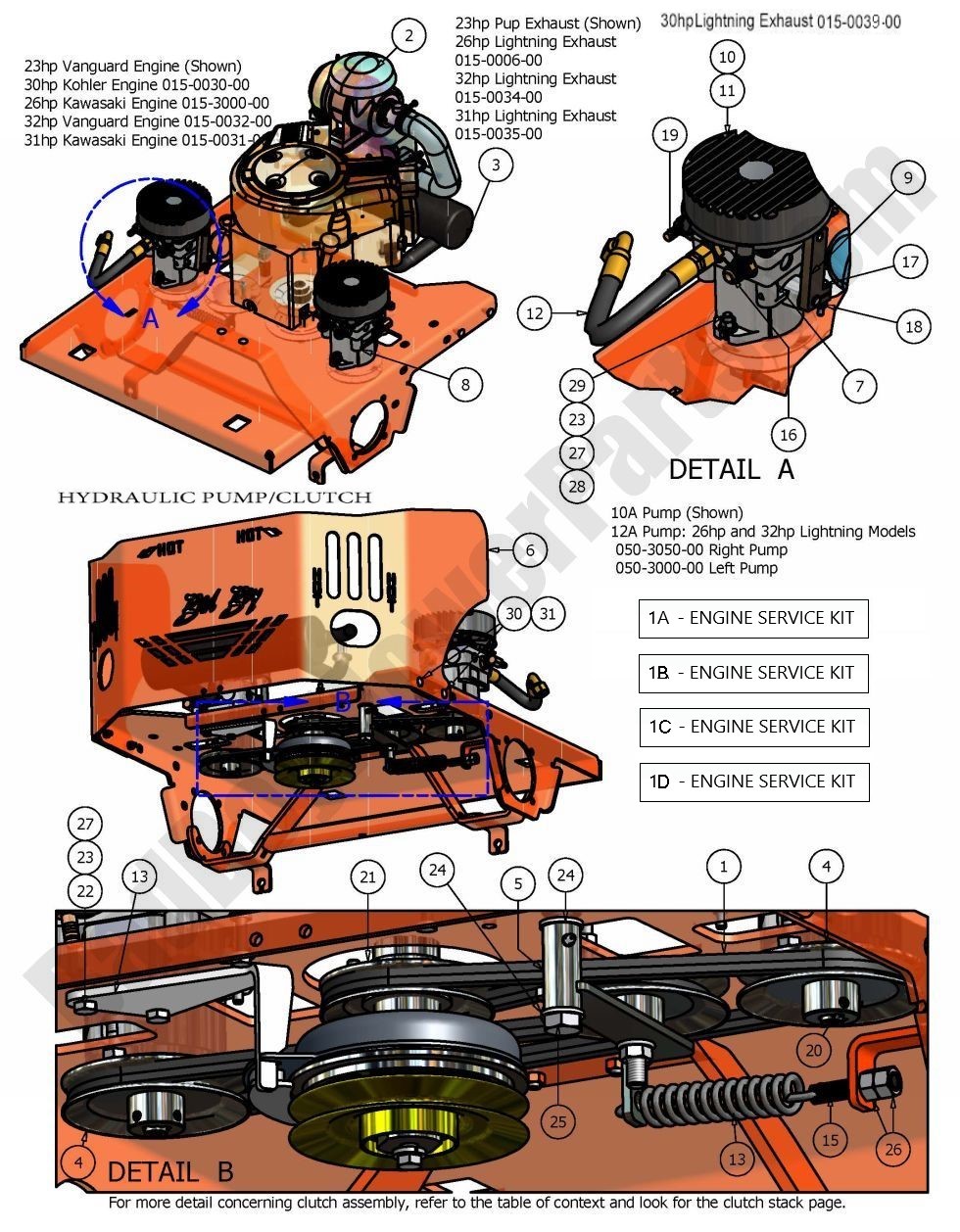

2008 Pup and Lightning - Hydraulic Pump & Clutch

2008 Pup and Lightning - Hydraulic Pump & Clutch

If you have a Lightning Unit be aware that the pumps used were different then what was used on the Pup Models. This is also the case for the Pump Fan Covers

Pup Pumps - Item # 7,8

Lightning Pumps - Items # 32, 32A

The 2008 Pup and Lightning Hydraulic Pump & Clutch are integral to your mower’s performance, and BadBoyMowerParts.com provides the parts you need to keep them in optimal working condition. Our selection of Bad Boy Mower Parts includes the highest quality hydraulic pumps and clutch components for your mower. These parts help ensure smooth power transmission and efficient hydraulic system performance, making them essential for keeping your 2008 Pup and Lightning running at peak capacity. Use our detailed Bad Boy Mower Part diagrams to easily identify the components you need. Shopping Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can get your parts quickly without any added shipping costs. Make sure your mower stays in top working order by choosing BadBoyMowerParts.com for all your hydraulic pump and clutch needs.

Bad Boy Mower Parts Lookup

2008 Pup and Lightning - Hydraulic Pump & Clutch
  Position Number SKU Product Title Price
1A 063-2000-03 063-2000-03 - Briggs Vanguard 23hp Service Kit
$114.99
1B 063-2000-09 063-2000-09 - Kohler Command (Non-EFI Models)
$121.25
1C 063-2000-02 063-2000-02 - Kawasaki FX850 Engine Service Kit
$124.74
1D 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1E 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
1F 015-2708-00 015-2708-00 - Exhaust Gasket - 36hp Vanguard
$16.04
1G 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
1H 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
1 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
3 015-0033-00 015-0033-00 - Exhaust - 23hp Vanguard (See Models Used On For Details)
$205.66
4 033-5003-00 033-5003-00 - 5" Cast Pump Pulley - 15mm
$56.77
5 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
6 026-5321-00 026-5321-00 - Pup Rear Plate
$198.99
7 050-5303-00 050-5303-00 - 10cc Right Pump - Pup Models (See Models Used On For Details)
$899.99
8 050-5302-00 050-5302-00 - Left Pump, 10cc - Pup Models
$899.99
9 031-5333-00 031-5333-00 - XP/Pup/Lightning Pump Arm
$22.75
10 015-9999-00 015-9999-00 - Hydro Fan - Fits Hydraulic Pumps
$28.88
11A 014-5600-00 014-5600-00 - Fan Guard 6.5" - Fits Wheel Motor Pumps
$39.81
11 014-5500-00 014-5500-00 - Fan Guard 7"
$39.03

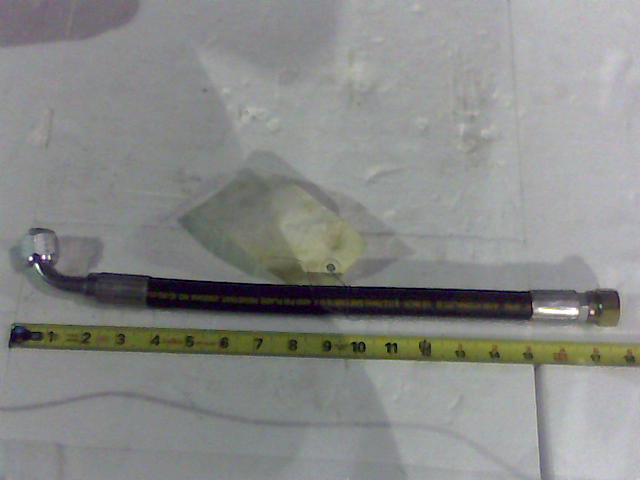

12 051-5341-00 051-5341-00 - 17" Hydraulic Hose-Pup/Lightni ng (obsolete)
use part #051-2000-00
$49.63
13A 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
13 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
15 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
16 024-5343-00 024-5343-00 - Hydraulic Pump Fitting 6400-10 -8
$7.95
17 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 Hex Bolt
$2.99
18 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
19 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
20 042-5301-00 042-5301-00 - 5MM X 1 Square Key Stock
$2.99
21 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details)
$35.48
22 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
23 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
26 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
27 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
28 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
29 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
30 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
31 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
32A 050-3000-00 050-3000-00 - Left Pump 12cc - PK-3KCC-GY1C-XXXX
$909.99
32 050-3050-00 050-3050-00 - Right Pump 12cc - Lightning PK-3HCC-GY1C-XXXX
$899.99

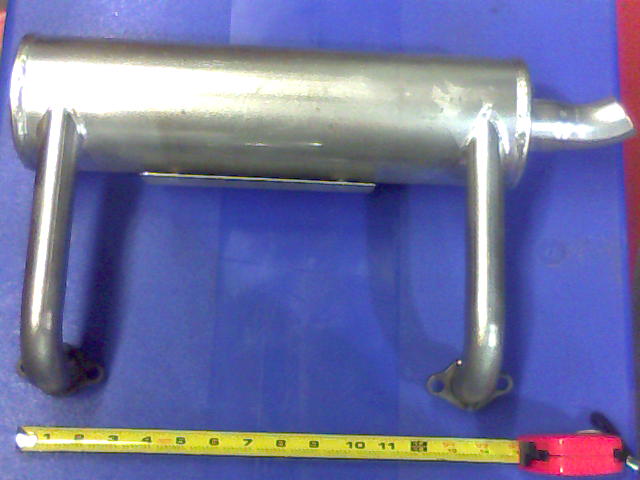

33 015-0006-00 015-0006-00 - 26hp Kawasaki Exhaust (See Models Used On For Details)
$247.99
34 015-0034-00 015-0034-00 - Exhaust-32/36hp Vanguard Engine (See Models Used On For Details)
$185.76
35 015-0035-00 015-0035-00 - Exhaust for 31hp Kawasaki
$219.99
36 015-0030-00 015-0030-00 - 27hp Kohler Engine 810cc
$3395.00
38 015-0032-00 015-0032-00 - 32hp Vanguard Engine
$3395.00
39 015-0031-00 015-0031-00 - Kaw Engine FX-850V-AS15R
$3395.00
40 015-0039-00 015-0039-00 - Exhaust 30 Kohler
$699.99
