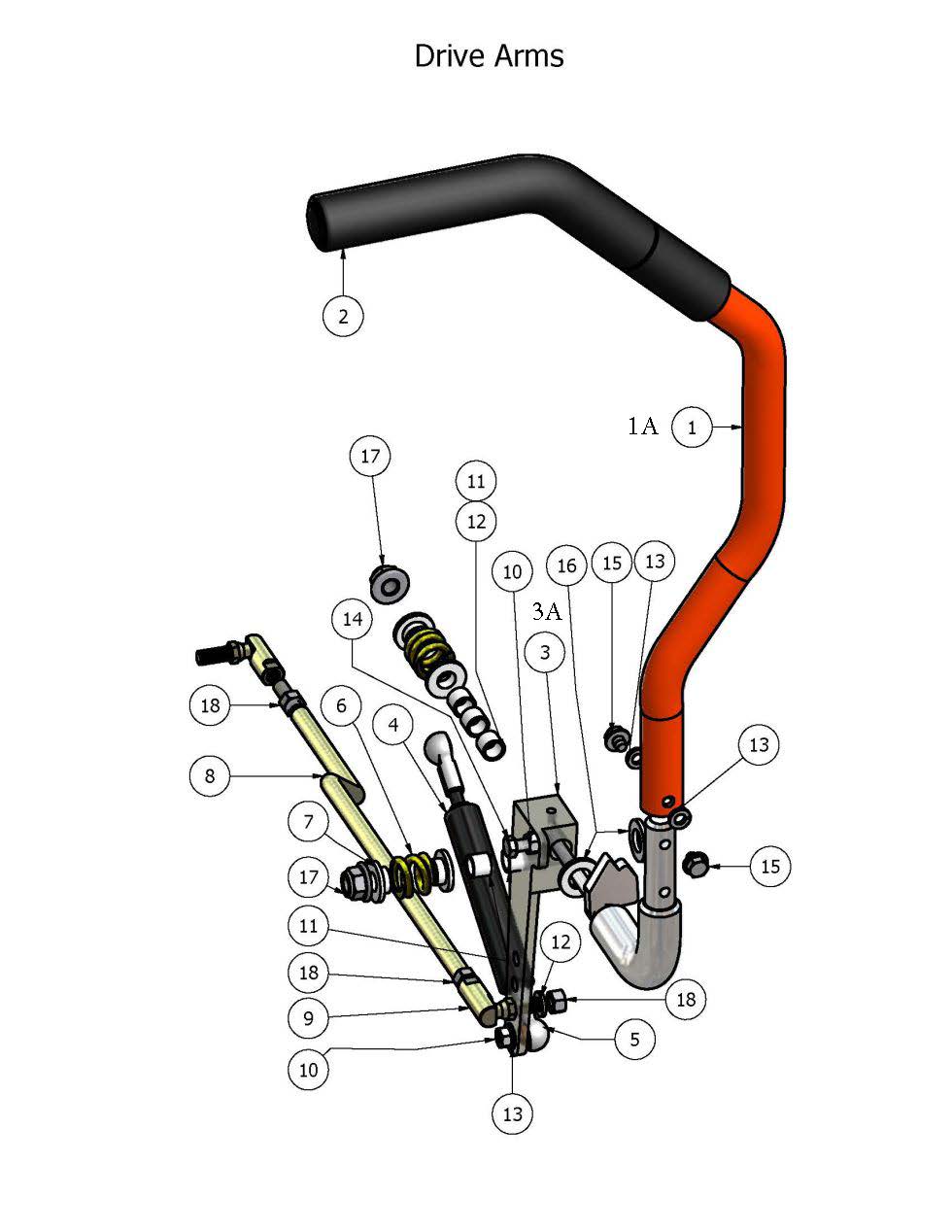

2008 Pup and Lightning - Drive Arm

2008 Pup and Lightning - Drive Arm

The 2008 Pup and Lightning Drive Arm is a key part of the mower’s drive system, and BadBoyMowerParts.com provides the high-quality Bad Boy Mower Parts you need to replace or maintain it. Our extensive selection of Bad Boy Lawn Mower Parts ensures that you’ll find the right components for your 2008 Pup and Lightning model. The drive arm plays a crucial role in ensuring smooth power transmission from the engine to the wheels, so it’s important to keep it in good condition. Use our Bad Boy Mower Part diagrams to identify the correct part for your mower, and rest assured that our parts are designed for durability and reliability. When shopping Bad Boy Parts Online, you’ll enjoy easy navigation and Free Shipping On Orders Over $100, making it simple and affordable to get the parts you need. Trust BadBoyMowerParts.com for all your drive arm needs.

Bad Boy Mower Parts Lookup

2008 Pup and Lightning - Drive Arm
  Position Number SKU Product Title Price
1A 031-8822-70 031-8822-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$99.32
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 031-8821-70 031-8821-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$99.32
2 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
3A 027-8819-00 027-8819-00 - Drive Arm Lever Housing-Left (See Models Used On For Details)
$46.84
3 027-8820-00 027-8820-00 - Drive Arm Lever Housing-Right (See Models Used On For Details)
$46.84
4 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socket Stabilus 000214
$56.72
5 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
6 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
7 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
9 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
10 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
11 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
14 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
15 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
16 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
