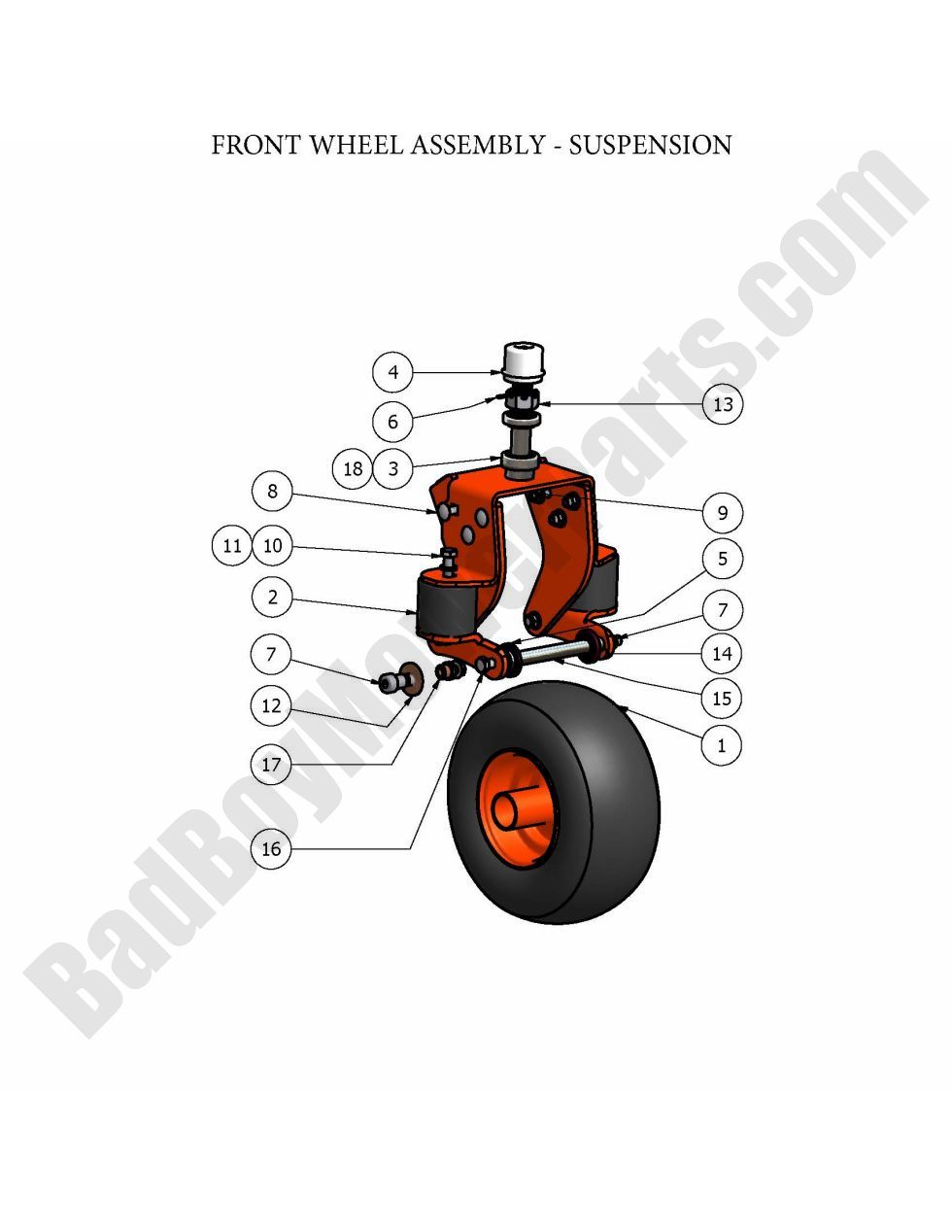

2008 Pup and Lightning Front Wheel w/ Suspension

Front Wheel w/ Suspension

The Bad Boy Mower parts diagram for the 2008 Pup and Lightning Front Wheel w/ Suspension is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2008 Pup and Lightning models. Find all of your Bad Boy mowers 2008 Pup and Lightning parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2008 Pup and Lightning Front Wheel w/ Suspension. If you are not able to find the Bad Boy parts for your 2008 Pup and Lightning please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2008 Pup and Lightning Front Wheel w/ Suspension
  Position Number SKU Product Title Price
1 022-2006-00 022-2006-00 - 13 x 6.50 - 6 Orange Tire and Wheel Assembly
$85.59
2 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
3A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
3 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
4 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
5 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
6 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
7 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
8 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
9 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
10 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
11 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
12 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
13 013-7004-00 013-7004-00 - 1-14 Hex Castle Nut Plain (Slotted Nut)
$8.35
14 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
15 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
16 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
17 032-5052-00 032-5052-00 - Bronze Bushing - SF-2024-8 Front Suspension Fork
$4.81
18 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$2.99
